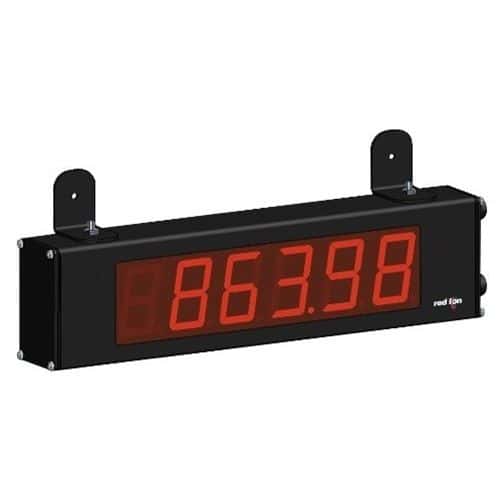

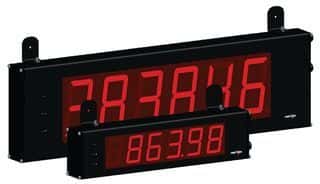

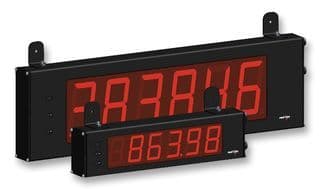

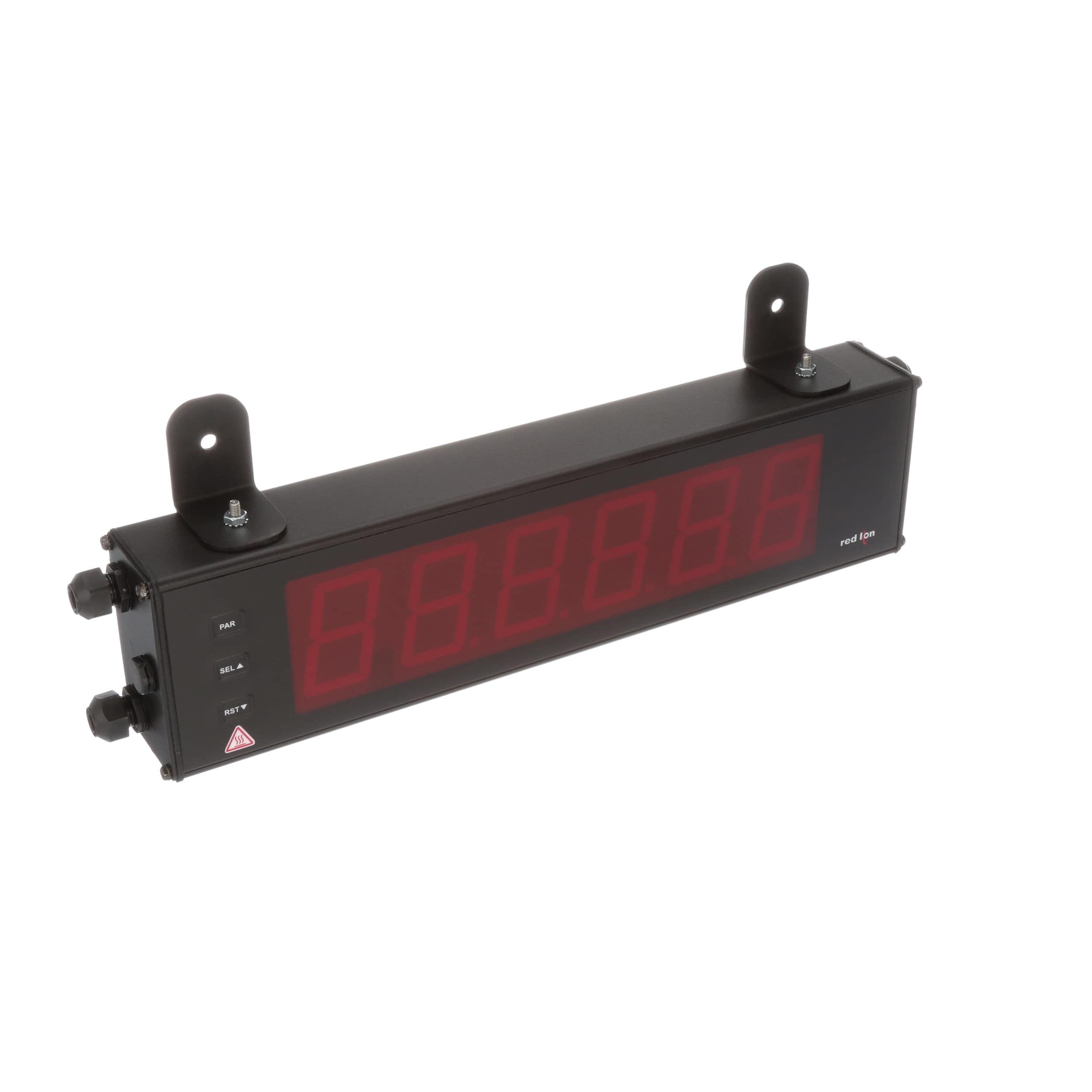

This 6-digit dual-display panel meter offers bidirectional counting up to 25kHz with 0.01% accuracy. Featuring RS-232 and RS-485 output, it supports programmable, front panel, and external reset functions. Designed for industrial automation, this chassis or panel mount component operates from 85-250VAC or 11-16VDC, with a temperature range of 0°C to 65°C. It boasts IP66, water-resistant, and dust-tight ratings, and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion LD2006P0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.01% |
| Approvals | UL, CSA, IEC, EN |
| Count Direction | Bidirectional |
| Lead Free | Lead Free |
| Logic Function | Counter |
| Max Frequency | 25kHz |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (AC) | 250V |
| Min Supply Voltage (AC) | 85V |
| Max Supply Voltage (DC) | 16V |
| Min Supply Voltage (DC) | 11V |
| Mount | Chassis Mount, Panel |
| Number Of Characters Per Row | 6 |
| Output Type | RS-232, RS-485 |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Reset | Programmable, Front Panel , External |
| RoHS Compliant | Yes |
| Series | LD |
| Termination | Screw |
| Weight | 2.04kg |
| Width | 406.4mm |
| RoHS | Compliant |
