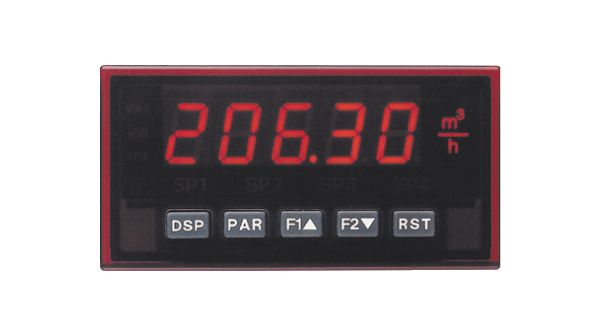

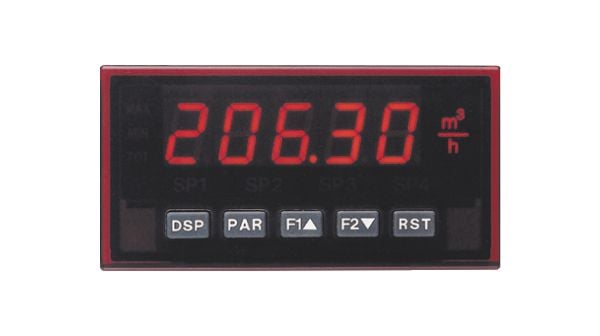

5-digit panel meter featuring 0.12% accuracy, designed for industrial automation and control applications. Operating within a 0°C to 50°C temperature range, this water-resistant and dust-tight component (IP65 rated) requires a 11V to 36V DC supply voltage. Panel-mountable with screw termination, it offers a depth of 104.1mm and a power consumption of 11W. UL and CE approvals confirm its compliance with industry standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion PAXP0010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.12% |
| Approvals | UL, CE |
| Depth | 104.1mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (DC) | 36V |
| Min Supply Voltage (DC) | 11V |
| Mount | Panel |
| Number Of Characters Per Row | 5 |
| Operating Supply Voltage | 125V |
| Package Quantity | 1 |
| Power Consumption | 11W |
| Ratings | IP65, Water Resistant, Dust Tight |
| Series | PAX |
| Termination | Screw |
| Weight | 0.65lb |
| RoHS | Compliant |
