High isolation voltage Darlington output optocoupler featuring a 5kV maximum isolation voltage and 40V minimum collector-emitter breakdown voltage. This multi-element photocoupler offers a 2000% nominal current transfer ratio and a maximum forward current of 80mA, with a maximum dark current of 400nA. Operating across a wide temperature range from -55°C to 100°C, it boasts UL recognition and is RoHS and REACH SVHC compliant with copper terminal finish.
Quick Jump:
Technical Specifications
Renesas PS2502-4-A technical specifications.
General
Additional Feature
UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min
40V
Current Transfer Ratio-Nom
2000%
Dark Current-Max
400nA
Forward Current-Max
80mA
Isolation Voltage-Max
5kV
JESD-609 Code
e1
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Number of Elements
4
Optoelectronic Device Type
DARLINGTON OUTPUT OPTOCOUPLER
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Terminal Finish
Copper
Compliance
RoHS
Compliant
Datasheet
Renesas PS2502-4-A Datasheet
Download the complete datasheet for Renesas PS2502-4-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

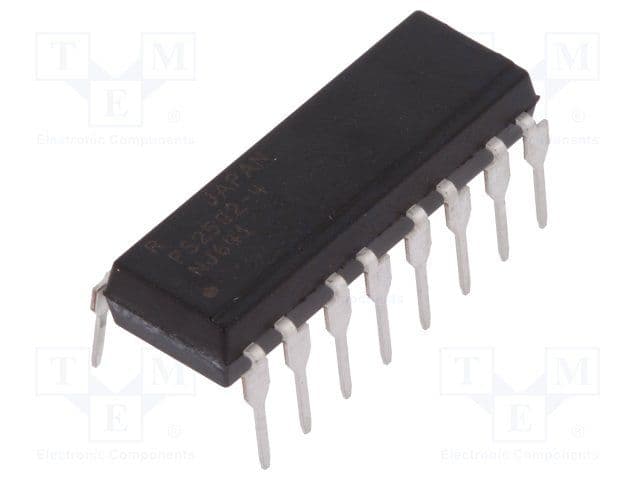

Product Images
