Technical Specifications
Renesas PS2505L-1-A technical specifications.
General
Additional Feature
UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min
80V
Current Transfer Ratio-Nom
300%
Dark Current-Max
100nA
Forward Current-Max
80mA
Isolation Voltage-Max
5kV
JESD-609 Code
e6
Lead Free
Lead Free
Max Collector Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
150mW
Number of Channels
1
Number of Elements
1
Optoelectronic Device Type
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Output Current per Channel
50mA
Output Voltage
80V
Power Dissipation
300mW
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Terminal Finish
Tin
Compliance
RoHS
Compliant
Datasheet
Renesas PS2505L-1-A Datasheet
Download the complete datasheet for Renesas PS2505L-1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

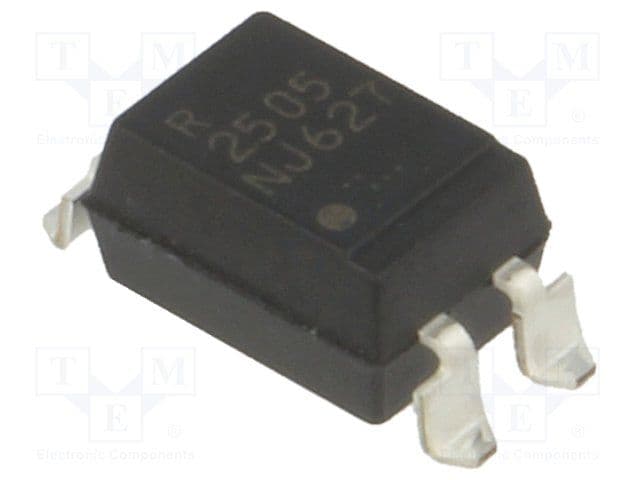

Product Images
