Technical Specifications
Renesas R1LV0816ABG-5SI#B0 technical specifications.
General
Access Time-Max
55ns
Density
8388608b
I/O Type
COMMON
JESD-30 Code
R-PBGA-B48
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
35mA
Memory Type
SRAM,
Memory Width
16
Moisture Sensitivity Level
3
Number of Words
524288
Number of Words Code
512K
Organization
512KX16
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
FBGA
Package Shape
Rectangular
Package Style
GRID ARRAY, FINE PITCHMeter
Parallel/Serial
PARALLEL
Peak Reflow Temperature (Cel)
260°C
Power Supplies
2.5/3.3V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Voltage-Min
1.5V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Ball
Terminal Pitch
0.75mm
Terminal Position
BOTTOM
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV0816ABG-5SI#B0 Datasheet
Download the complete datasheet for Renesas R1LV0816ABG-5SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

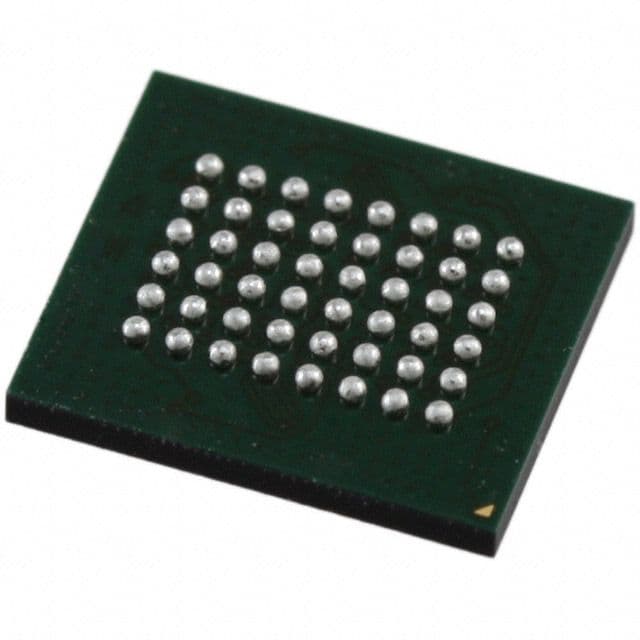

Product Images
