16-bit microcontroller featuring 128KB Flash memory and a 20MHz maximum operating frequency. This surface-mount device operates within a 2.7V to 5.5V supply voltage range and is housed in a 44-pin LQFP package with a 0.8mm terminal pitch. Designed for industrial temperature ranges (-40°C to 85°C), it offers 40 I/O lines and utilizes CMOS technology.
Frequency20MHz
Quick Jump:
Technical Specifications
Renesas R5F100FGAFP#V0 technical specifications.
General
Height - Seated (Max)
1.6mm
JESD-30 Code
S-PQFP-G44
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Moisture Sensitivity Level
3
Number of I/O Lines
40
Package Body Material
Plastic
Package Code
LQFP
Package Shape
Square
Package Style
FLATPACK, LOW PROFILEMeter
RoHS Compliant
Yes
Speed
32RPM
Supply Voltage-Nom
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Pitch
0.8mm
Terminal Position
QUAD
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Renesas R5F100FGAFP#V0 Datasheet
Download the complete datasheet for Renesas R5F100FGAFP#V0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

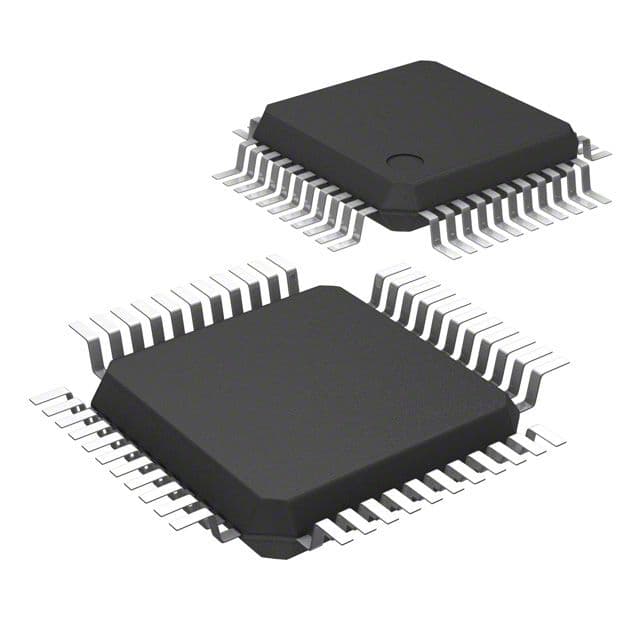

Product Images
