16-bit microcontroller (MCU) featuring 4KB Flash memory and a maximum operating frequency of 20MHz. This surface-mount device operates from 3V to 5.5V supply voltages, with a nominal supply of 3.3V. It offers 16 I/O lines and is housed in a 20-lead LSSOP package with a 0.65mm terminal pitch. The component is RoHS and REACH SVHC compliant, with an operating temperature range of -20°C to 85°C.
Frequency20MHz
Quick Jump:
Technical Specifications
Renesas R5F211A1SP#U0 technical specifications.
General
Height - Seated (Max)
1.45mm
JESD-30 Code
R-PDSO-G20
Length
6.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of I/O Lines
16
Package Body Material
Plastic
Package Code
LSSOP
Package Equivalence Code
SSOP20,.25
Package Shape
Rectangular
Package Style
SMALL OUTLINE, LOW PROFILE, SHRINK PITCHMeter
Power Supplies
3/5V
Qualification Status
Not Qualified
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Speed
20RPM
Supply Voltage-Nom
3.3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
OTHER
Terminal Form
Gull Wing
Terminal Pitch
0.65mm
Terminal Position
DUAL
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Renesas R5F211A1SP#U0 Datasheet
Download the complete datasheet for Renesas R5F211A1SP#U0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

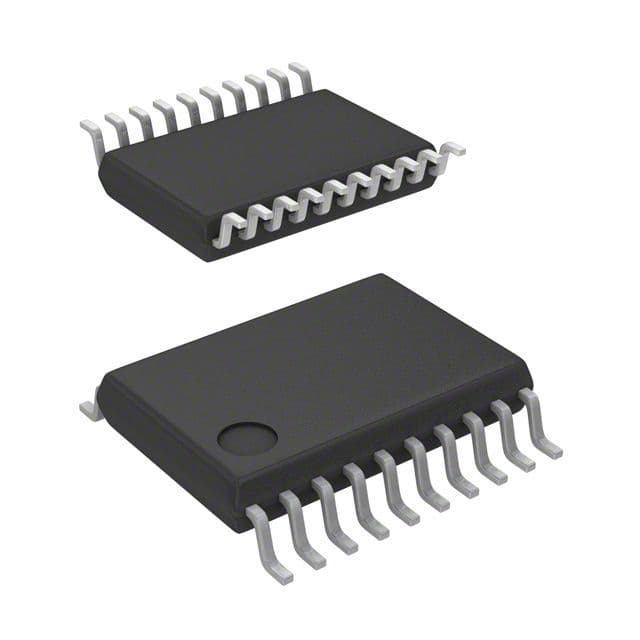

Product Images
