Surface mount single color LED emitter, red illumination, featuring a diffused milky white lens. This 0603 package component operates with a 20mA forward current, delivering 40mcd luminous intensity at a 630nm wavelength. It offers a wide 140° viewing angle and is RoHS compliant, with dimensions of 1.6mm length, 0.8mm width, and 0.65mm height. Operating temperature range is -30°C to 85°C.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm SML-511UWT86 technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Red
Forward Current
20mA
Height
0.65mm
Illumination Color
Red
Lead Free
Lead Free
Length
1.6mm
Lens Color
White, Diffused
Lens Style
Rectangular, Colorless, Diffused
Lens Transparency
Diffused
Luminous Intensity
40mcd
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
140°
Wavelength
630nm
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Rohm SML-511UWT86 Datasheet
Download the complete datasheet for Rohm SML-511UWT86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

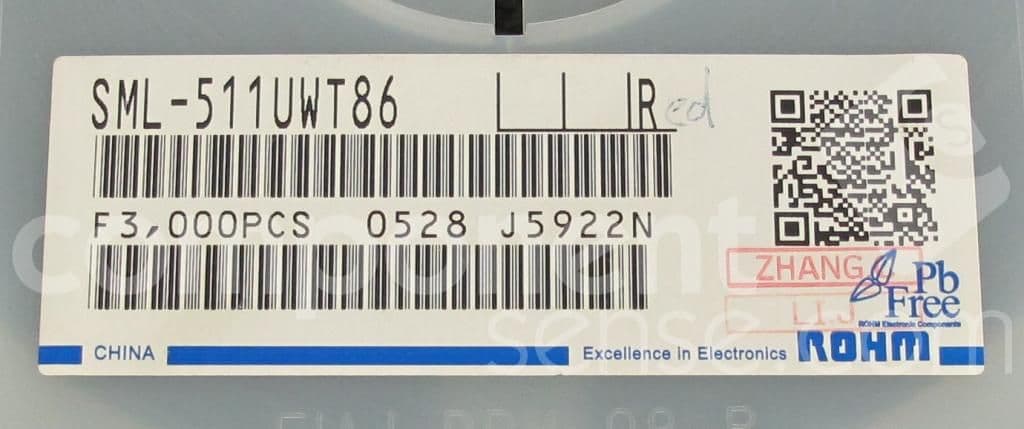

Product Images
