Surface mount single color LED emitter, red illumination with a diffused, colorless, rectangular lens. Features a 160° viewing angle and a wavelength of 630nm. Operates with a 20mA forward current, delivering 40mcd luminous intensity. Housed in a compact 0603 (1608 metric) package, measuring 1.6mm in length, 0.8mm in width, and 0.65mm in height. RoHS compliant and lead-free.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm SML-D12V8WT86 technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Red, White
Forward Current
20mA
Height
0.65mm
Illumination Color
Red
Lead Free
Lead Free
Length
1.6mm
Lens Color
White
Lens Style
Diffused, Colorless, Rectangular
Lens Transparency
Diffused
Luminous Intensity
40mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EXCELED™
Viewing Angle
160°
Wavelength
630nm
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Rohm SML-D12V8WT86 Datasheet
Download the complete datasheet for Rohm SML-D12V8WT86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

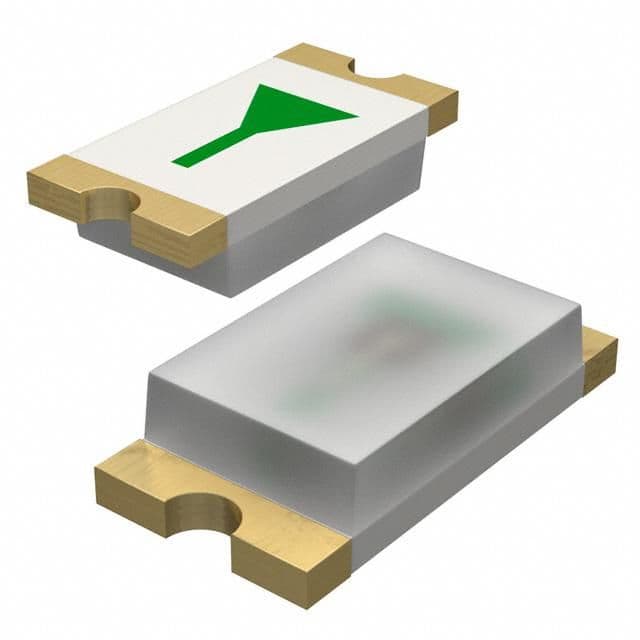

Product Images
