RF coaxial connector, male gender, featuring a 50 Ohm impedance and operating up to 26.5GHz. Constructed with a brass body and center contact, both plated in gold, and a polymer dielectric. This connector supports 500 mating cycles, a maximum operating temperature of 155°C, and a voltage rating of 335V. Termination is achieved via solder, with a RoHS compliant design.
Frequency26.5GHz
Voltage Rating335V
Quick Jump:
Technical Specifications
Rosenberger 19S101-40ML5 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Brass
Dielectric Material
Polymer
Gender
Male
Housing Color
Gold
Impedance
50R
Mating Cycles
500
Max Frequency
26.5GHz
Max Operating Temperature
155°C
Min Operating Temperature
-65°C
Number of Ports
1
Packaging
Bulk
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
Rosenberger 19S101-40ML5 Datasheet
Download the complete datasheet for Rosenberger 19S101-40ML5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

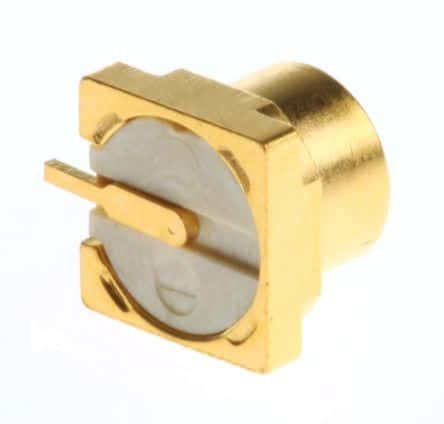

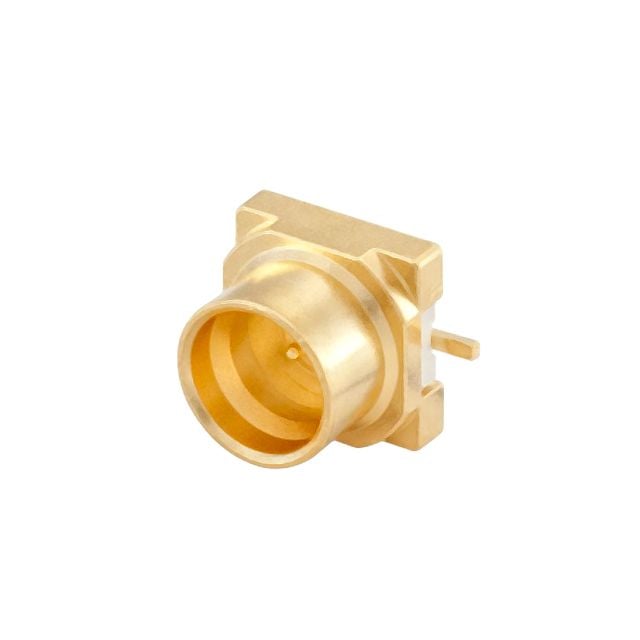

Product Images
