Technical Specifications
Rubycon 10ZA100M6.3X7 technical specifications.
General
Capacitance
100uF
Diameter
6.3mm
Dielectric Material
Aluminium
Height
7mm
Impedance
150mR
Lead Diameter
0.45mm
Lead Pitch
2.5mm
Leakage Current
10uA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Reach SVHC Compliant
No
Ripple Current (AC)
480mA
RoHS Compliant
Yes
Series
ZA
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Rubycon 10ZA100M6.3X7 Datasheet
Download the complete datasheet for Rubycon 10ZA100M6.3X7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

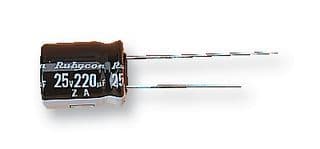

Product Images
