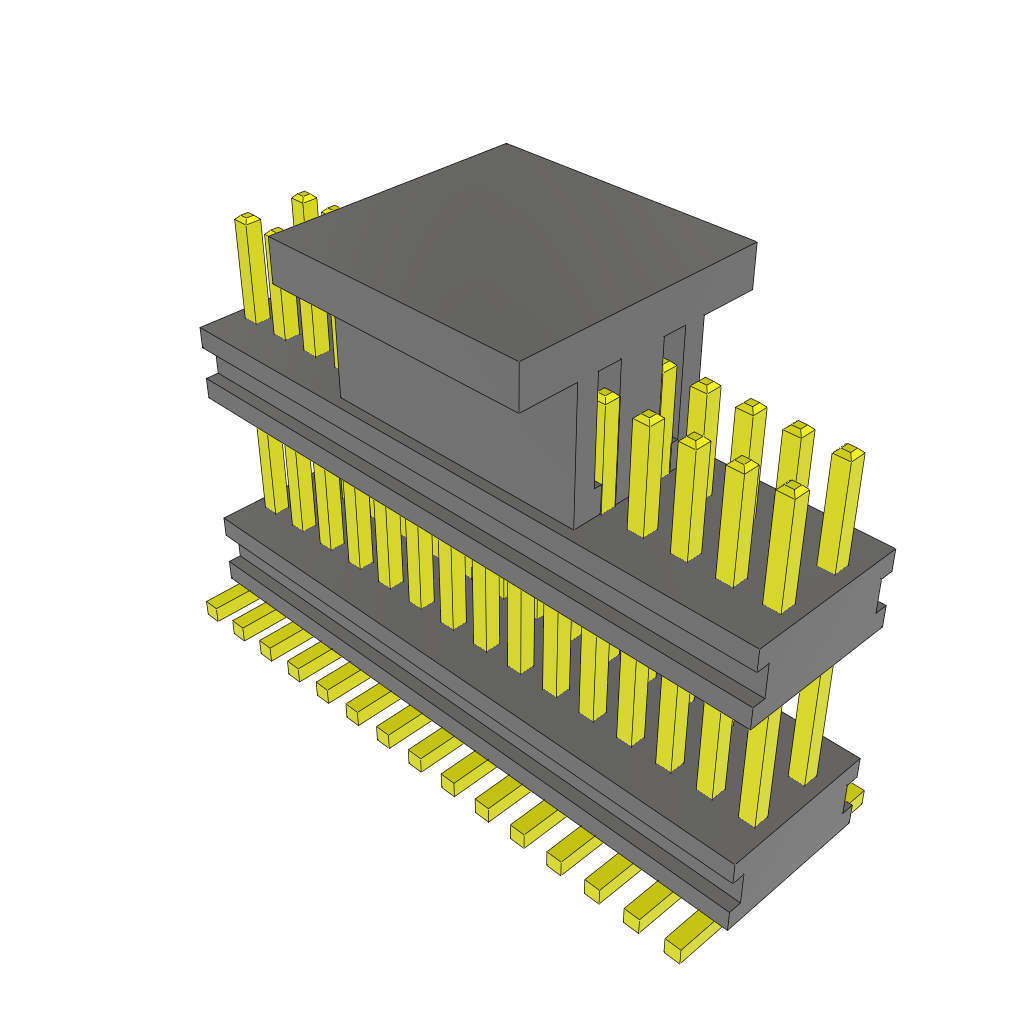

The AW-15-03-G-D-224-075-A-P-TR is a board stacker connector with 30 HDR contacts, a terminal pitch of 0.8mm, and 2 rows. It features a straight body orientation and is designed for surface mount applications. The connector operates within a temperature range of -55°C to 125°C and has a maximum current rating of 0.75A per contact. The AW-15-03-G-D-224-075-A-P-TR is manufactured by Samtec and is suitable for use in a variety of electronic applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec AW-15-03-G-D-224-075-A-P-TR technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 30 |
| Terminal Pitch | 0.8mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Surface Mount |
| Max Current Rating | 0.75/ContactA |
| Height | 7.58mm |
Compliance
| RoHS | Yes with Exemption |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec AW-15-03-G-D-224-075-A-P-TR Datasheet
Download the complete datasheet for Samtec AW-15-03-G-D-224-075-A-P-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
