4-position, 2-row socket strip receptacle with 2.54mm pitch and straight, top-entry orientation. Features gold-plated bronze contacts, a black housing, and a 5.08mm depth and width. Rated for 5.9A max current and 475V AC max voltage, operating from -55°C to 125°C. Through-hole mounting with solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BCS-102-L-D-TE technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Depth
5.08mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
5.08mm
Max Current Rating
5.9A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
475V
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
Tiger Claw™ BCS
Termination
Solder
Width
5.08mm
Compliance
RoHS
Compliant
Datasheet
Samtec BCS-102-L-D-TE Datasheet
Download the complete datasheet for Samtec BCS-102-L-D-TE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

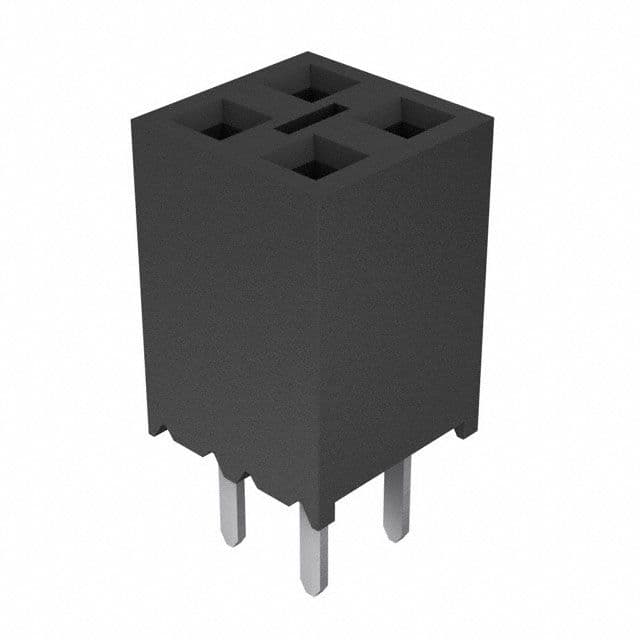

Product Images
