2.54mm pitch, right-angle shrouded socket strip receptacle with 26 positions and 1 row. Features gold-plated bronze contacts, a 5.9A current rating, and a 450V voltage rating. Designed for through-hole mounting with solder termination and a black housing. Operates within a temperature range of -55°C to 125°C.
Voltage Rating450V
Current Rating5.9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BCS-126-L-S-HE technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 5.9A |
| Depth | 8.13mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 66.04mm |
| Max Current Rating | 5.9A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 450V |
| Mount | Through Hole |
| Number of Contacts | 26 |
| Number of Positions | 26 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Tiger Claw™ BCS |
| Termination | Solder |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec BCS-126-L-S-HE Datasheet
Download the complete datasheet for Samtec BCS-126-L-S-HE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

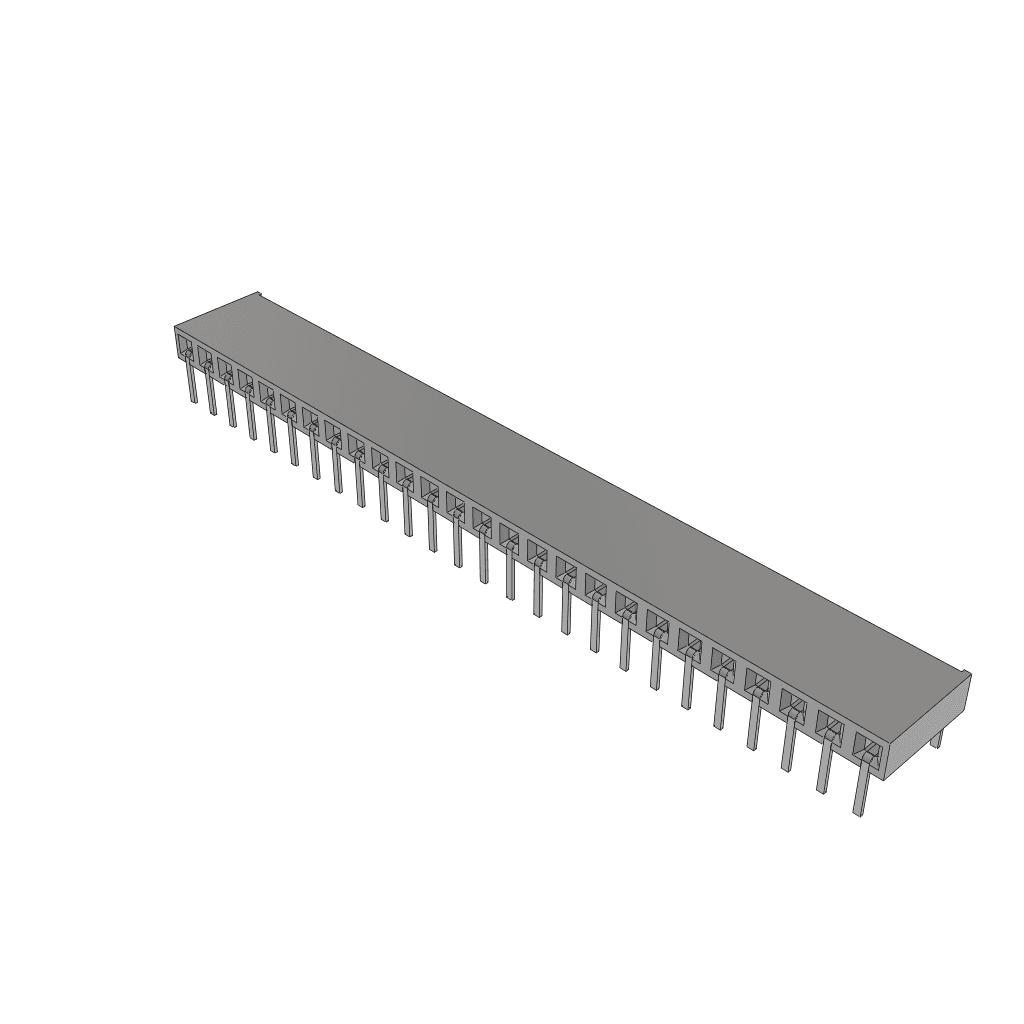

Product Images
