72-position, 2-row socket strip connector with 2.54mm pitch. Features gold-plated bronze contacts with a square female socket shape, designed for side entry and right-angle through-hole mounting. Rated for 475V AC and operating temperatures from -55°C to 125°C, with a UL94 V-0 flammability rating. Constructed with a black polymer housing and insulation, this lead-free component is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BCS-136-L-D-HE technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
5.72mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
91.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
72
Number of Positions
72
Number of Rows
2
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Tiger Claw™ BCS
Termination
Solder
Voltage Rating (AC)
475V
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
Samtec BCS-136-L-D-HE Datasheet
Download the complete datasheet for Samtec BCS-136-L-D-HE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

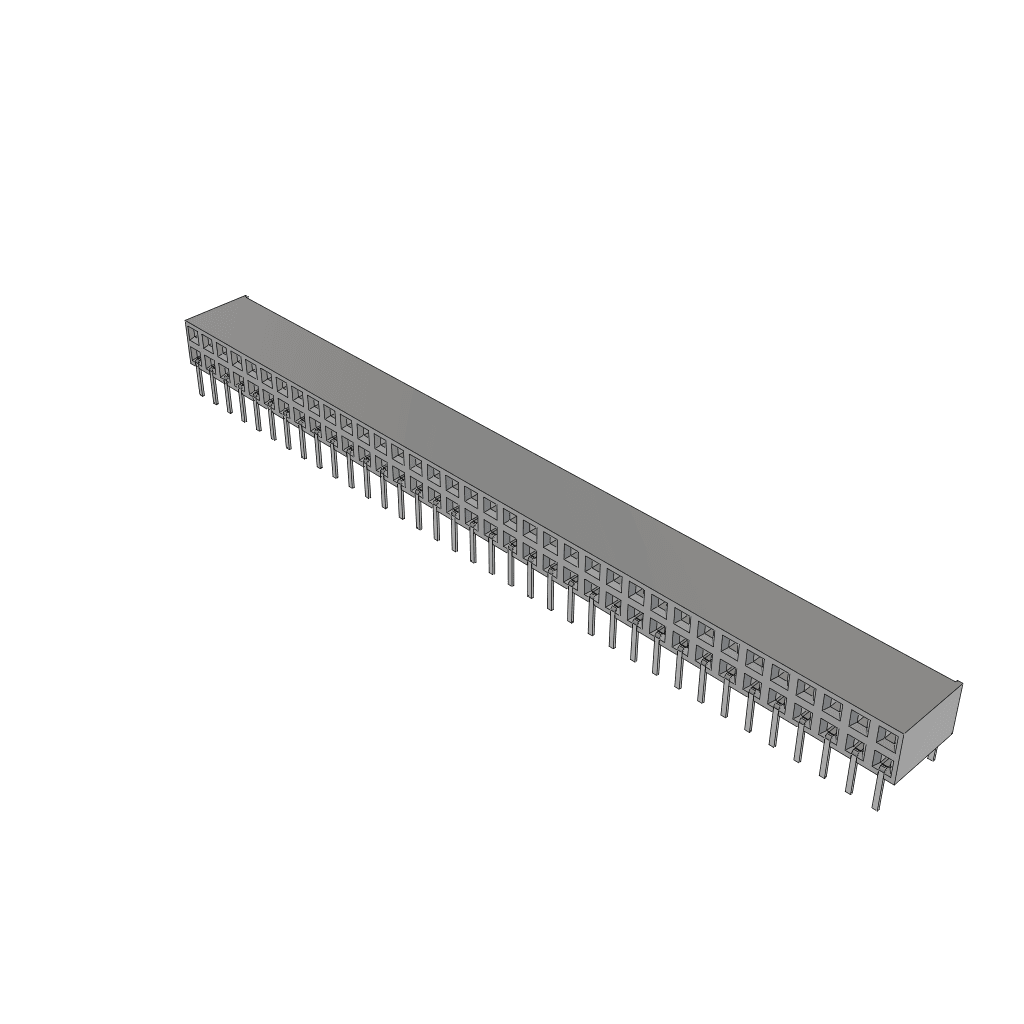

Product Images
