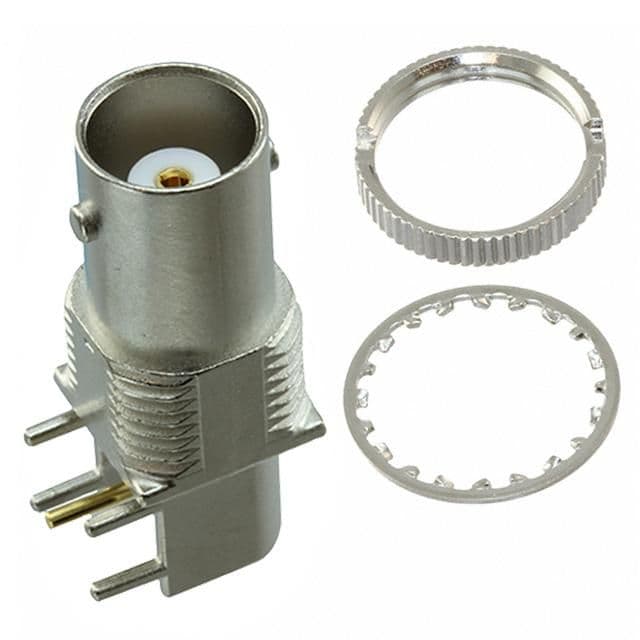

BNC5-J-P-GN-RA-BH2D

Conn BNC 0Hz to 4GHz 50Ohm Solder RA Thru-Hole RCP Tray

Frequency4GHz

MountingThrough Hole, Panel, Bulkhead, Front Side Nut

Quick Jump:

Samtec BNC5-J-P-GN-RA-BH2D technical specifications.

Body Material	Zinc
Body Plating	Nickel
Center Contact Plating	Gold
Contact Material	Bronze
Dielectric Material	PTFE
Gender	Female
Housing Color	Silver
Impedance	50R
Max Frequency	4GHz
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Mount	Through Hole, Panel, Bulkhead, Front Side Nut
Number of Ports	1
Packaging	Tray
RoHS Compliant	No
Termination	Solder

RoHS	Not Compliant
