14-position, single-row receptacle connector with a 2.54mm pitch. Features bronze contacts with tin plating, rated for 1A current and 333V voltage. Operates across a temperature range of -55°C to 105°C. Black housing, straight orientation, and through-hole mounting with solder termination.
Voltage Rating333V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec CES-114-01-T-S technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
3.05mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
35.56mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
333V
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CES
Termination
Solder
Voltage Rating
333V
Compliance
RoHS
Compliant
Datasheet
Samtec CES-114-01-T-S Datasheet
Download the complete datasheet for Samtec CES-114-01-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

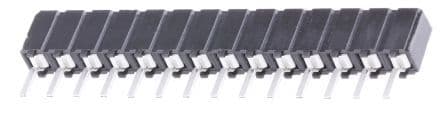

Product Images
