2.54mm pitch, 29-position, single-row straight shrouded header receptacle with female socket contacts. Features tin-plated bronze square contacts, PBT insulation, and a current rating of 1A. Operates within a temperature range of -55°C to 105°C and has a voltage rating of 333V AC. Through-hole termination with solder connection, housed in black PBT with UL94 V-0 flammability rating.
Voltage Rating333V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec CES-129-01-T-S technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Contact Shape
Square
Contact Type
Female Socket
Current Rating
1A
Depth
3.05mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
PBT
Lead Free
Lead Free
Length
73.66mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
333V
Mount
Through Hole
Number of Contacts
29
Number of Positions
29
Number of Rows
1
Orientation
Straight
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CES
Termination
Solder
Voltage Rating
333V
Compliance
RoHS
Compliant
Datasheet
Samtec CES-129-01-T-S Datasheet
Download the complete datasheet for Samtec CES-129-01-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

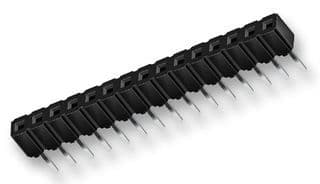

Product Images
