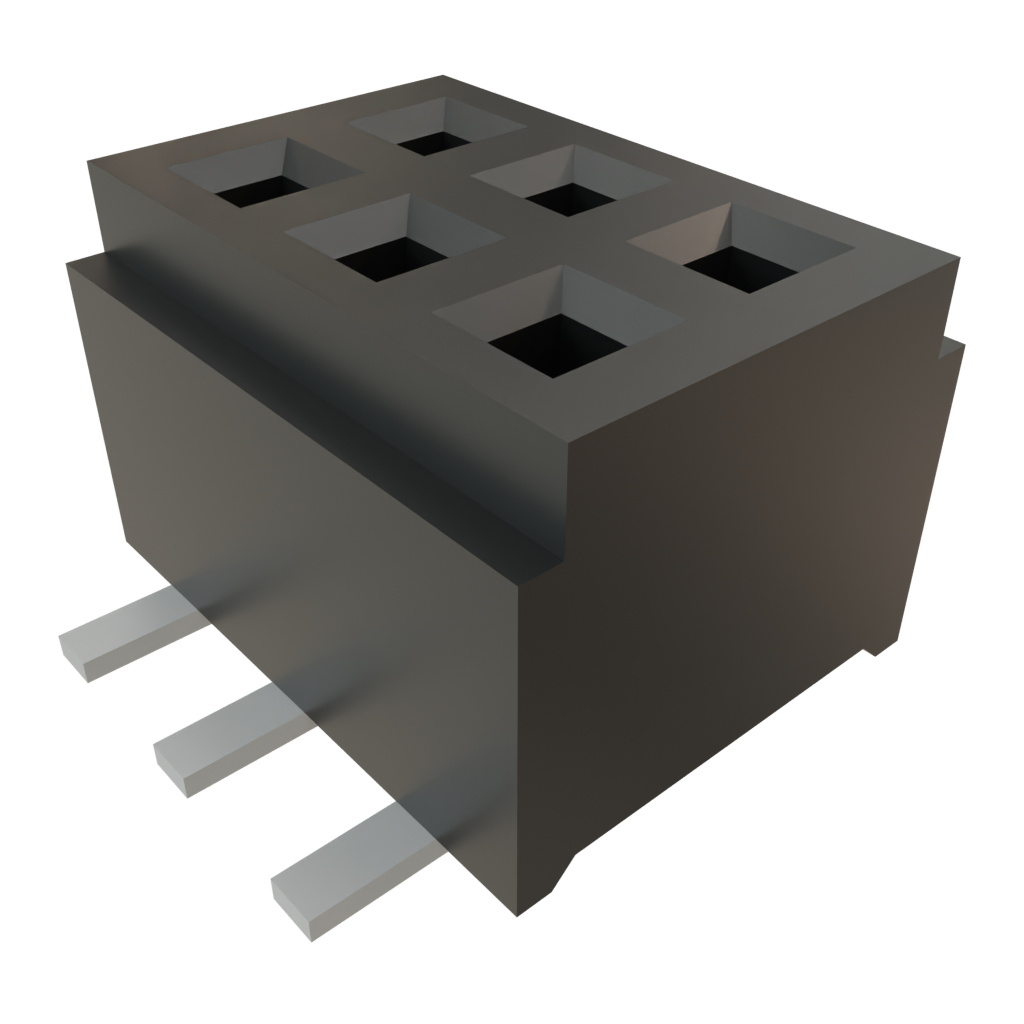

6-position, 2-row, 1mm pitch shrouded socket strip with straight, surface mount termination. Features gold-plated bronze female socket contacts with a square shape. Operates within a -55°C to 125°C temperature range and boasts a UL94 V-0 flammability rating. Black polymer insulation and housing.
Quick Jump:
Technical Specifications
Samtec CLM-103-02-F-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
3.81mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
3.43mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CLM
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec CLM-103-02-F-D Datasheet
Download the complete datasheet for Samtec CLM-103-02-F-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

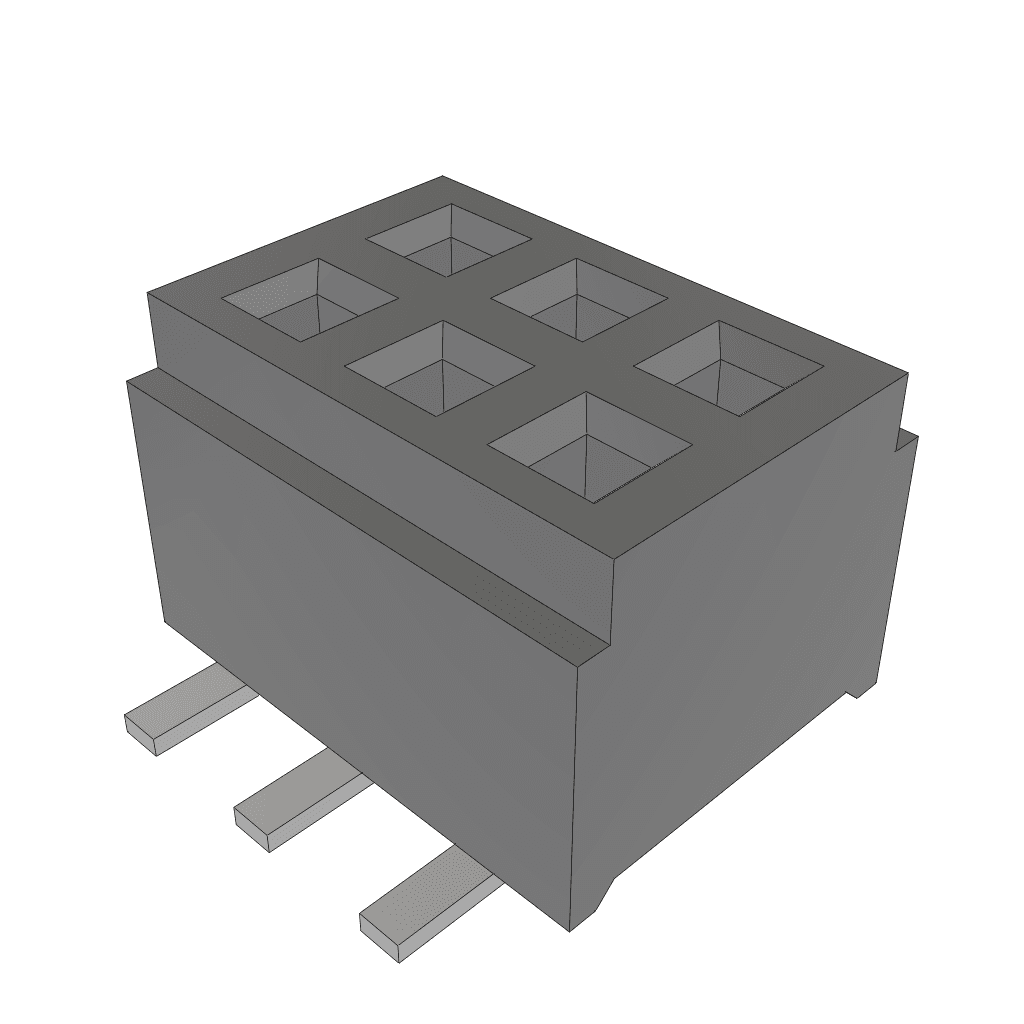

Product Images
