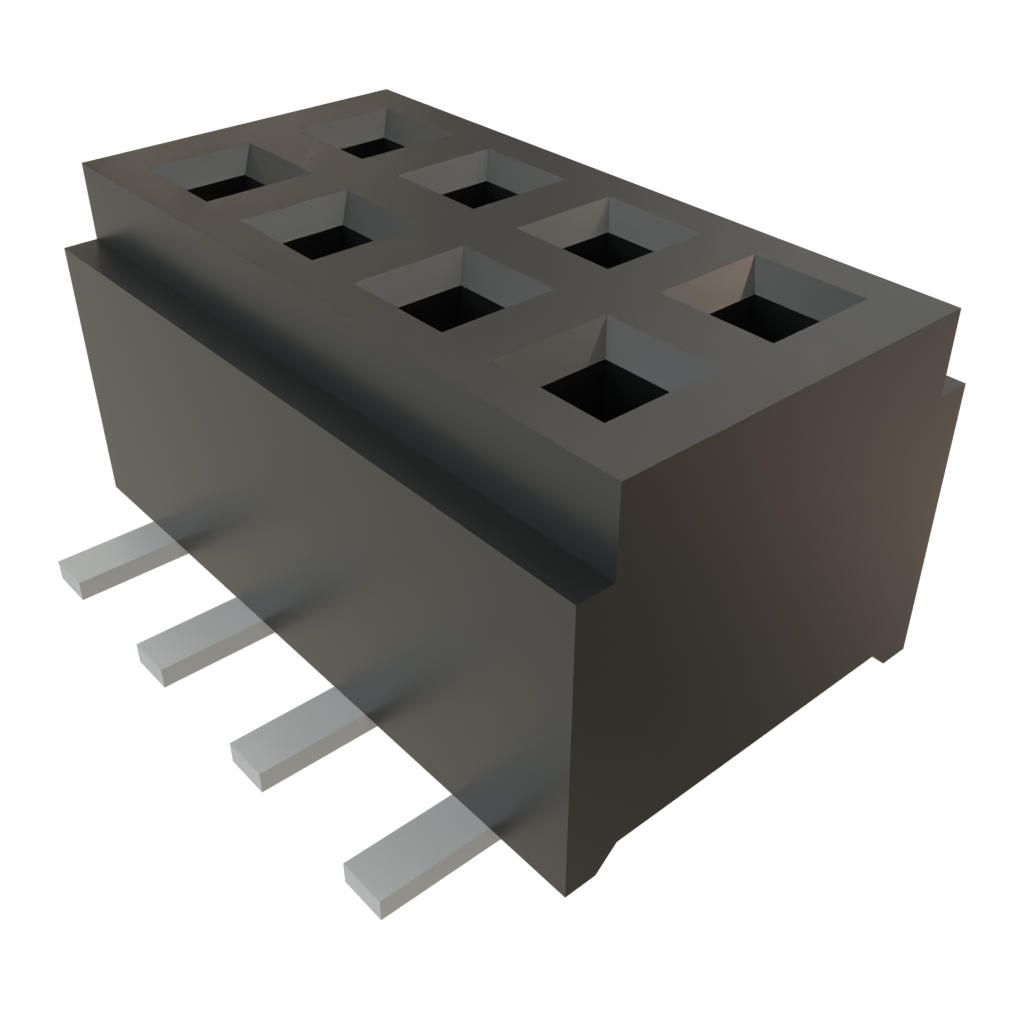

This 8-position 2-row shrouded header features 8 female sockets with a contact finish of gold and a contact material of bronze. The header is made of a polymer insulation material with a black color and is compliant with RoHS regulations. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The header is packaged in bulk and is not Reach SVHC compliant.
Quick Jump:
Technical Specifications
Samtec CLM-104-02-F-D technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CLM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec CLM-104-02-F-D Datasheet
Download the complete datasheet for Samtec CLM-104-02-F-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
