28-position, 2-row female socket connector with 2mm pitch, designed for through-hole mounting and solder termination. Features gold-plated bronze contacts with a square shape and a 0.079" mating surface. Operates within a -55°C to 125°C temperature range, with a UL94 V-0 flammability rating and lead-free, RoHS-compliant construction. The black polymer insulation material ensures durability.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec CLT-114-01-G-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Gender
Female
Height
2.13mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
28mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
28
Number of Positions
28
Number of Rows
2
Packaging
Rail/Tube
Pitch
2mm
RoHS Compliant
Yes
Series
CLT
Termination
Solder
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Samtec CLT-114-01-G-D Datasheet
Download the complete datasheet for Samtec CLT-114-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

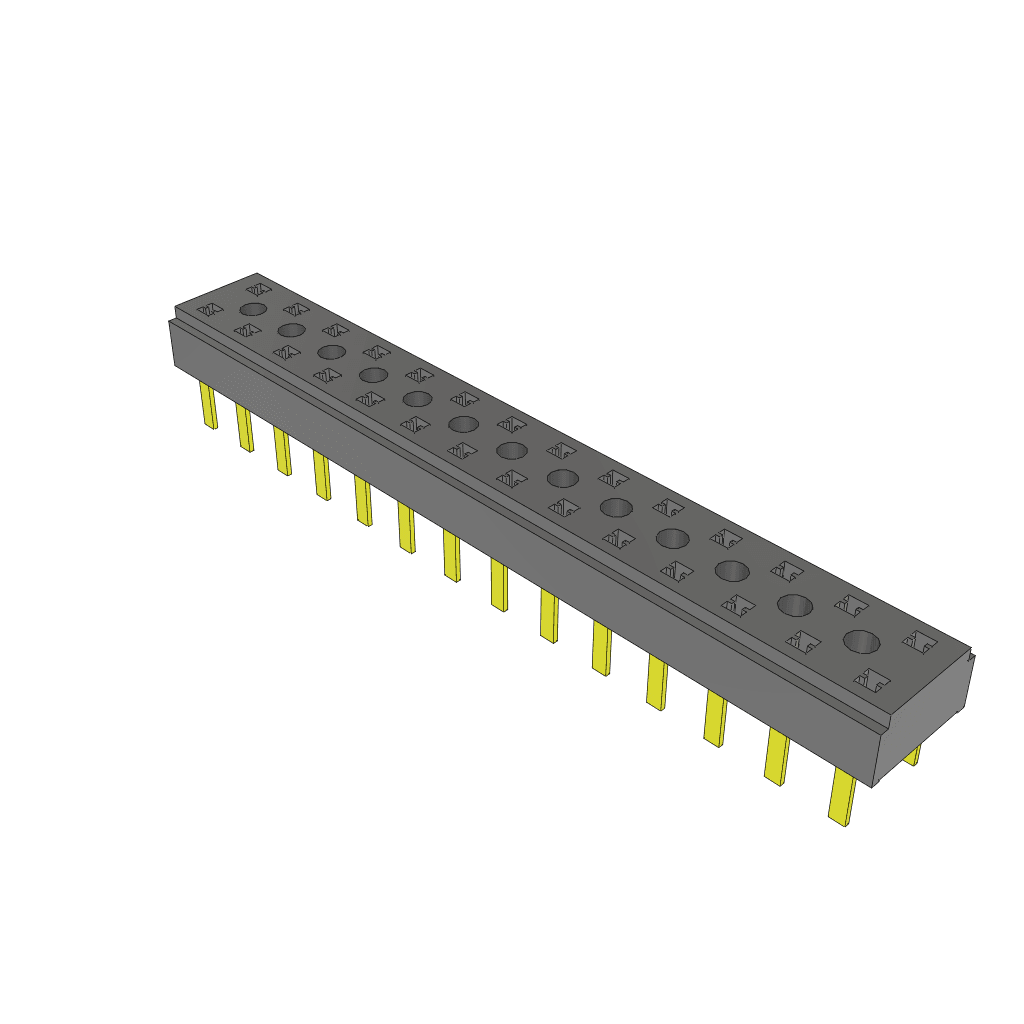

Product Images
