Technical Specifications

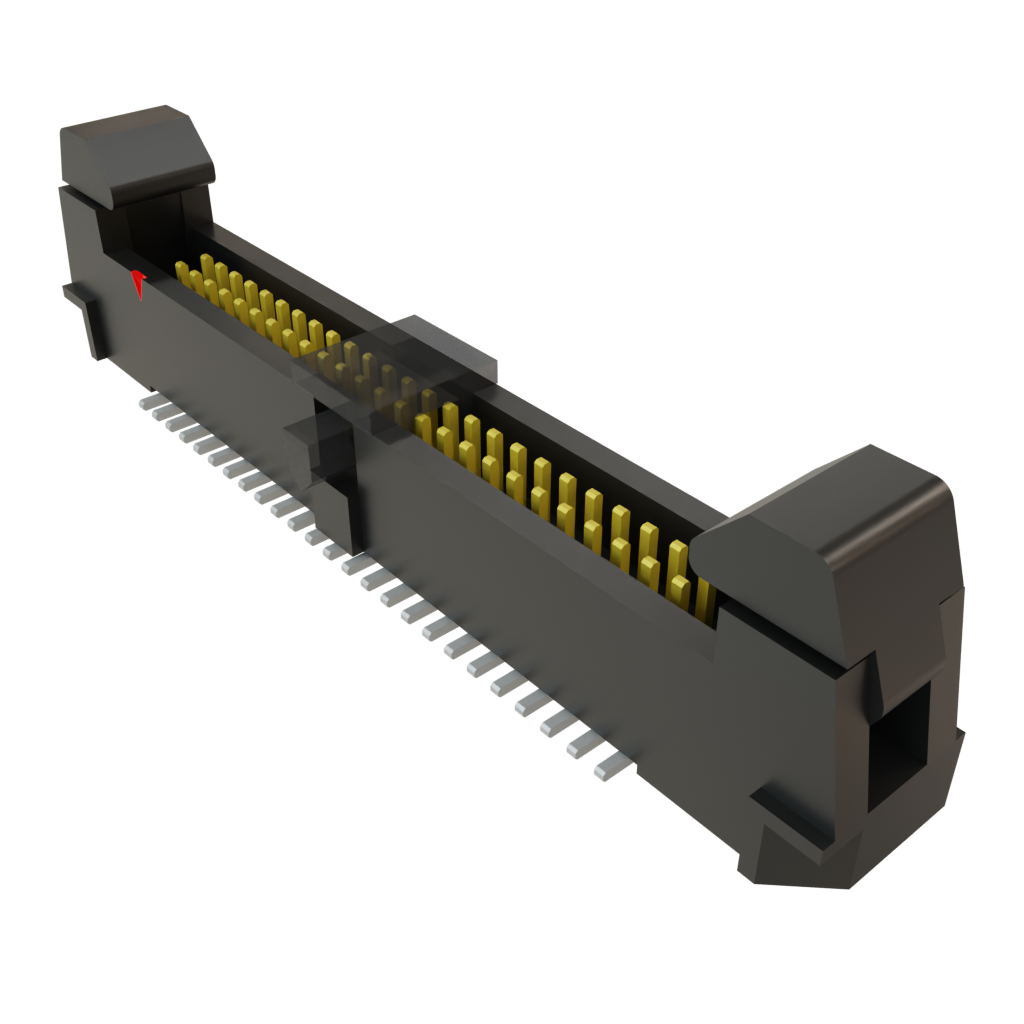

Samtec EHF-125-01-L-D-SM-P technical specifications.
General
Max Operating Temperature
125
Min Operating Temperature
-55
Termination Type
SURFACE MOUNT
Insulator Material
LIQUID CRYSTAL POLYMER (LCP)
Total Number of Contacts
50
Contact Gender
MALE
Reliability
COMMERCIAL
Manufacturer Series
EHF-1
Mounting Style
STRAIGHT
Rated Current (Signal)
1.75
Insulator Color
BLACK
Number Of PCB Rows
2
Plating Thickness
10u
Number Of Connectors
ONE
Contact Finish Termination
Tin (Sn) - with Nickel (Ni) barrier
Mating Contact Row Spacing
0.05
Compliance
RoHS
Yes
Lead Free
Yes
REACH
Compliant
Military Spec
True
Datasheet
Samtec EHF-125-01-L-D-SM-P Datasheet
Download the complete datasheet for Samtec EHF-125-01-L-D-SM-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
