Samtec
ERF8-040-05.0-S-DV-TR

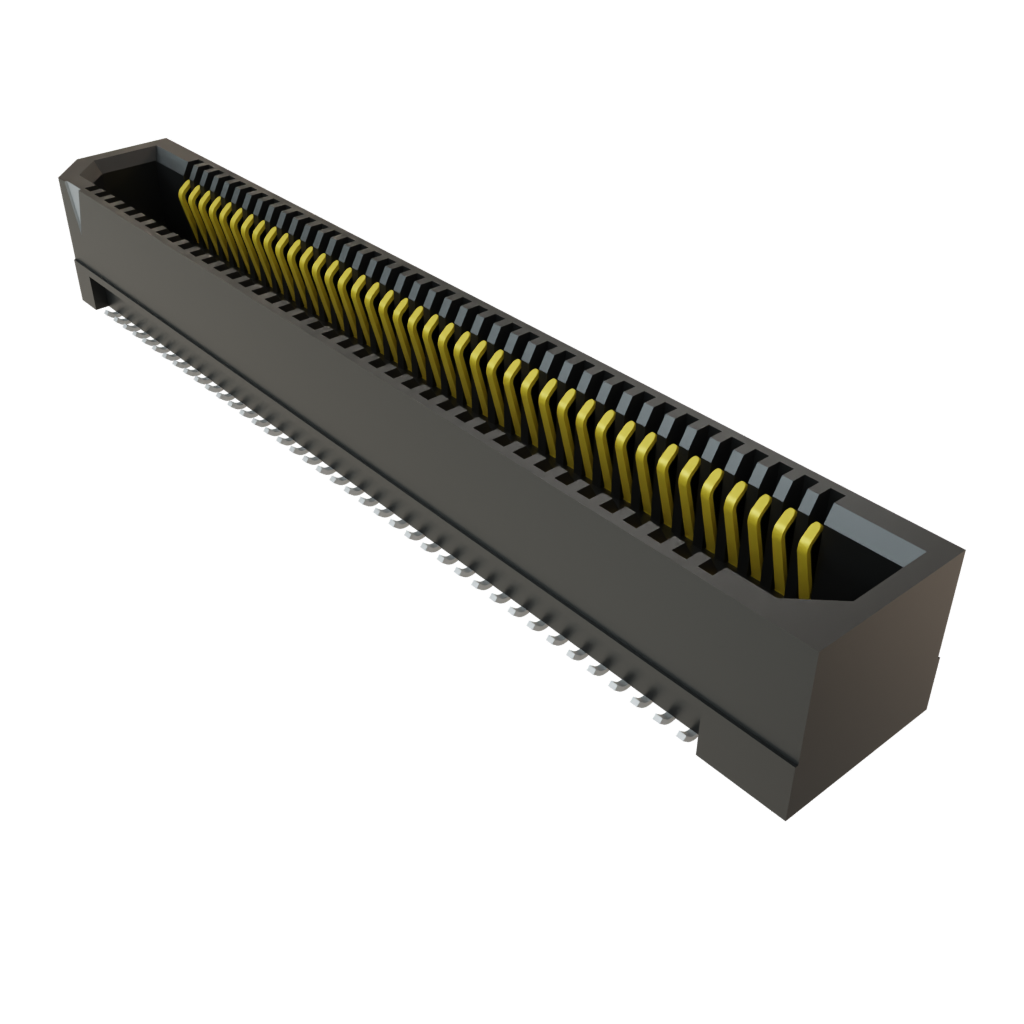

80-Contact Female Surface Mount Connector, 2 Rows, 30u Tin/Nickel Plating
This 80-contact female surface mount connector features a liquid crystal polymer (LCP) insulator and a commercial reliability rating. It has a maximum operating temperature of 125 degrees Celsius and a minimum operating temperature of -55 degrees Celsius. The connector is designed for surface mount applications and has a straight mounting style. It is plated with 30u of tin with a nickel barrier and has a black insulator color.
MountingSTRAIGHT
Quick Jump:
Technical Specifications
Samtec ERF8-040-05.0-S-DV-TR technical specifications.
General
| Max Operating Temperature | 125 |
| Min Operating Temperature | -55 |
| Termination Type | SURFACE MOUNT |
| Insulator Material | LIQUID CRYSTAL POLYMER (LCP) |
| Total Number of Contacts | 80 |
| Contact Gender | FEMALE |
| Reliability | COMMERCIAL |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 2.2 |
| Insulator Color | BLACK |
| Number Of PCB Rows | 2 |
| Plating Thickness | 30u |
| Number Of Connectors | ONE |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8536.69.40.40 |
| REACH | Compliant |
| Military Spec | True |
Datasheet
Samtec ERF8-040-05.0-S-DV-TR Datasheet
Download the complete datasheet for Samtec ERF8-040-05.0-S-DV-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
