Technical Specifications
Samtec ERM8-020-02.0-S-DV technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Gender
Male
Lead Pitch
0.8mm
Mated Stacking Heights
12mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
3.25mm
Series
Edge Rate™ ERM8
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Samtec ERM8-020-02.0-S-DV Datasheet
Download the complete datasheet for Samtec ERM8-020-02.0-S-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

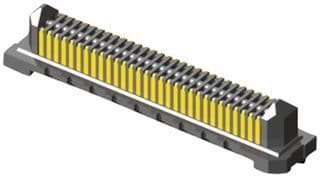

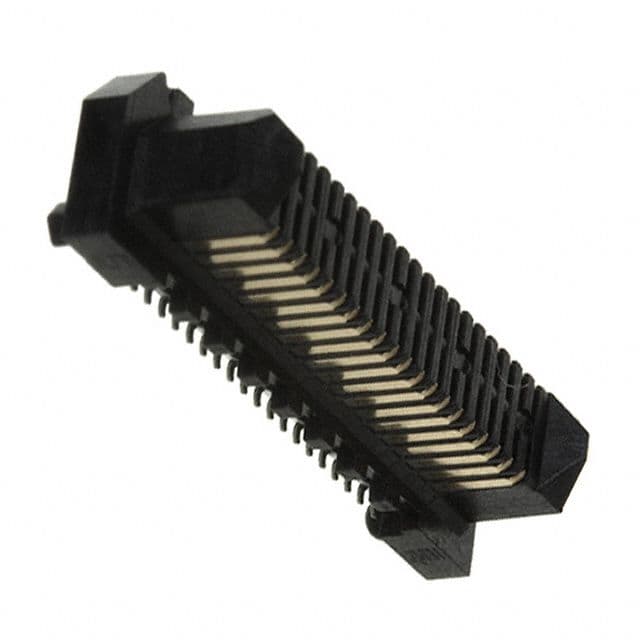

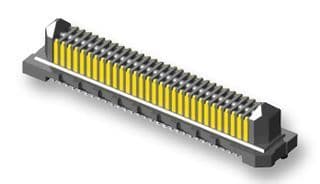

Product Images
