Samtec
ERM8-020-05.0-L-DV-TR

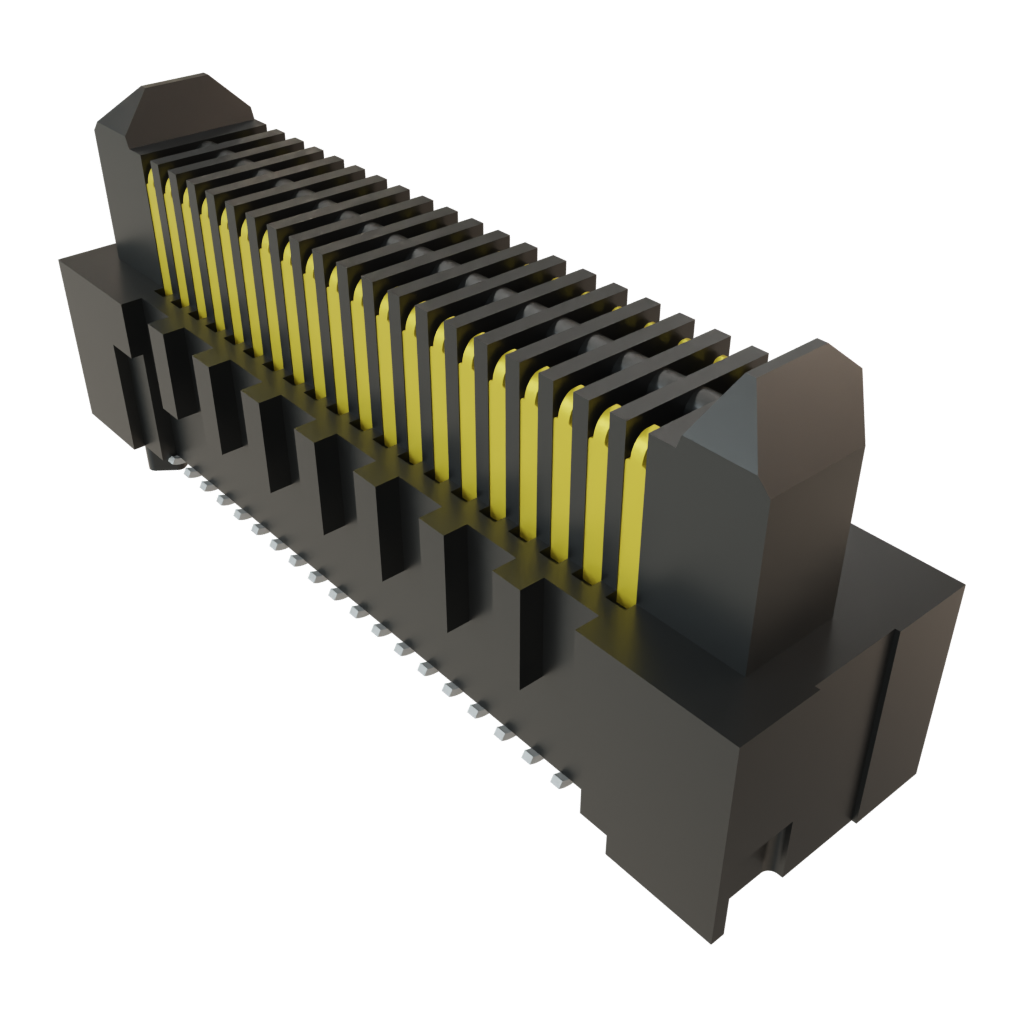

40-Contact Male Surface Mount Header, 2 Rows, 125°C, Commercial Reliability
This Samtec ERM8-020-05.0-L-DV-TR is a 40-contact male surface mount header with two rows, designed for commercial reliability and operating up to 125°C. It features a liquid crystal polymer (LCP) insulator and a matte tin (Sn) with nickel (Ni) barrier contact finish. The header is suitable for surface mount applications and has a plating thickness of 30 microns.
MountingSTRAIGHT
Quick Jump:
Technical Specifications
Samtec ERM8-020-05.0-L-DV-TR technical specifications.
General
| Max Operating Temperature | 125 |
| Min Operating Temperature | -55 |
| Termination Type | SURFACE MOUNT |
| Insulator Material | LIQUID CRYSTAL POLYMER (LCP) |
| Total Number of Contacts | 40 |
| Contact Gender | MALE |
| Reliability | COMMERCIAL |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 2.2 |
| Insulator Color | BLACK |
| Number Of PCB Rows | 2 |
| Plating Thickness | 30u |
| Number Of Connectors | ONE |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier |
Compliance
| RoHS | Yes |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | True |
Datasheet
Samtec ERM8-020-05.0-L-DV-TR Datasheet
Download the complete datasheet for Samtec ERM8-020-05.0-L-DV-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
