ERM8-025-02.0-L-DV-P-TR

Name: ERM8-025-02.0-L-DV-P-TR Samtec
Brand: Samtec
SKU: ERM8-025-02.0-L-DV-P-TR

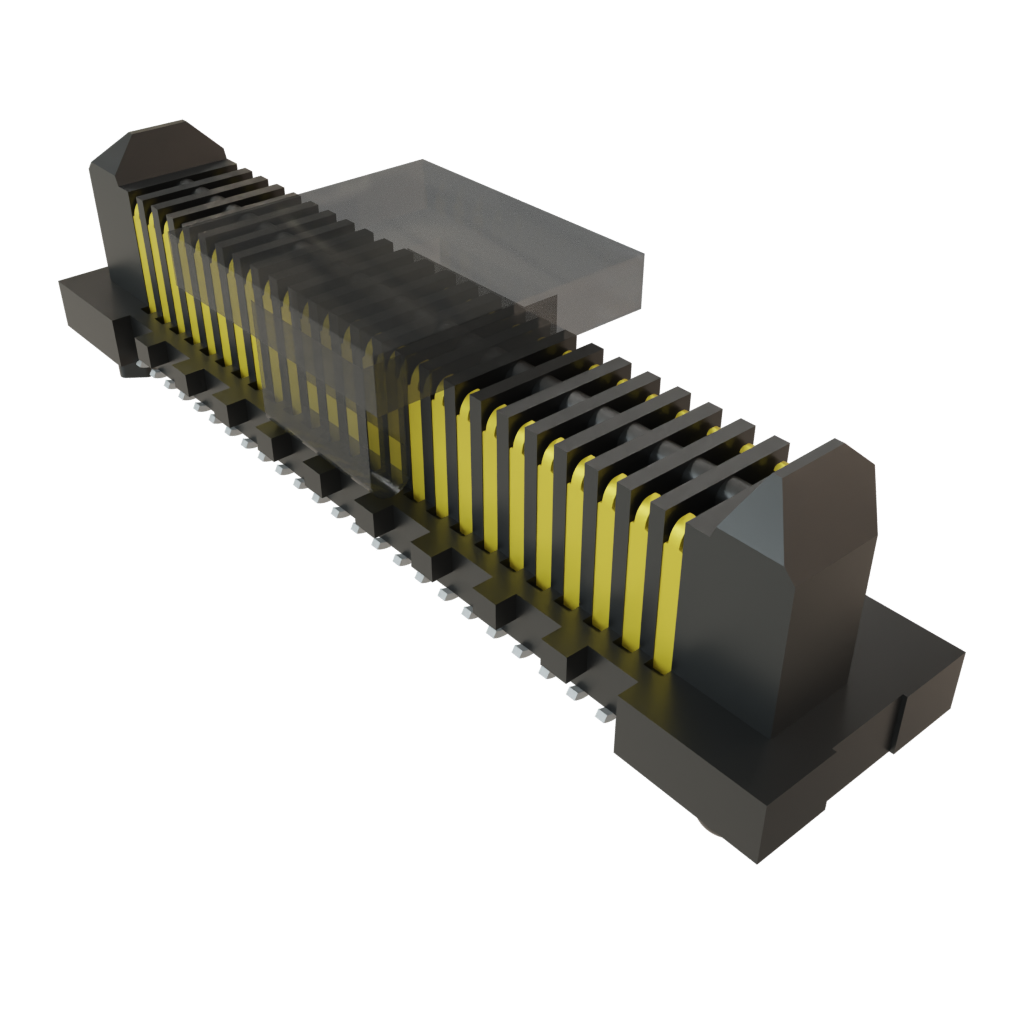

Conn Micro High Speed Terminal Strip HDR 50 POS 0.8mm Solder ST Top Entry SMD T/R

MountingSurface Mount

Quick Jump:

Distributor	Package Type	Min Qty	1+	25+	50+	100+	Stock	Action
Samtec	Tape & Reel	1	5.28	4.665	4.335	4.176	-	View

Samtec ERM8-025-02.0-L-DV-P-TR technical specifications.

Type	Micro High Speed Terminal Strip
Gender	HDR
Number of Contacts	50
Terminal Pitch	0.8mm
Number of Rows	2
Termination Method	Solder
Min Operating Temperature	-55°C
Max Operating Temperature	125°C
Body Orientation	Straight
Mounting	Surface Mount
Max Current Rating	2.2/ContactA
Max Voltage Rating	318VDC\|225VAC
Height	5.97mm

RoHS	Yes
RoHS Version	2011/65/EU, 2015/863
