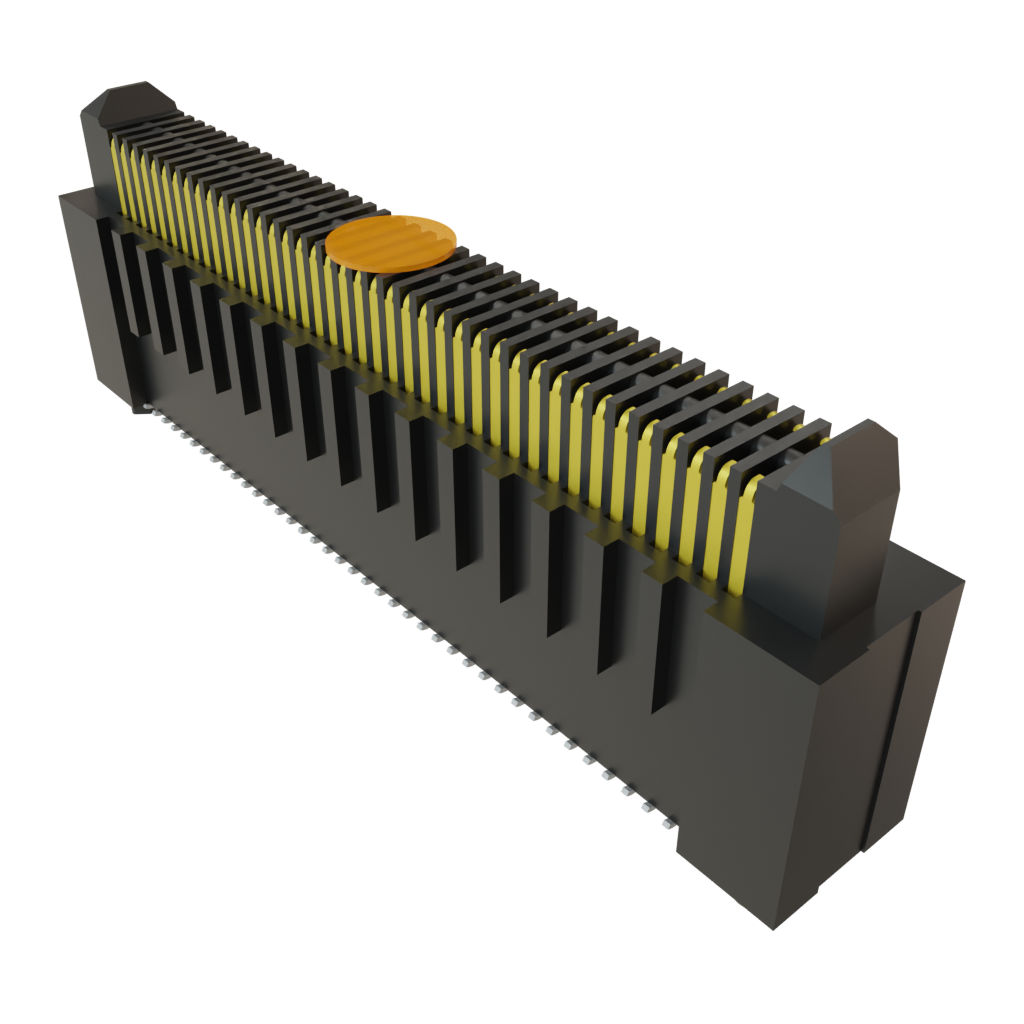

This Samtec ERM8-040-09.0-S-DV-K-TR connector features a maximum operating temperature of 125 degrees Celsius and a minimum operating temperature of -55 degrees Celsius. It is designed for surface mount applications and has a termination type of SURFACE MOUNT. The insulator material is LIQUID CRYSTAL POLYMER (LCP) and the contact finish termination is Matte Tin (Sn) with a Nickel (Ni) barrier. The connector has a rated current of 2.2 amps and is available in a shrouded and unshrouded version.
MountingSTRAIGHT
Quick Jump:
Technical Specifications
Samtec ERM8-040-09.0-S-DV-K-TR technical specifications.
General
| Max Operating Temperature | 125 |
| Min Operating Temperature | -55 |
| Termination Type | SURFACE MOUNT |
| Insulator Material | LIQUID CRYSTAL POLYMER (LCP) |
| Total Number of Contacts | 80 |
| Contact Gender | MALE |
| Reliability | COMMERCIAL |
| Manufacturer Series | ERM8 |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 2.2 |
| Insulator Color | BLACK |
| Number Of PCB Rows | 2 |
| Number Of Connectors | ONE |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | True |
