ERM8-070-02.0-L-DV-TR

Name: ERM8-070-02.0-L-DV-TR Samtec
Brand: Samtec
SKU: ERM8-070-02.0-L-DV-TR

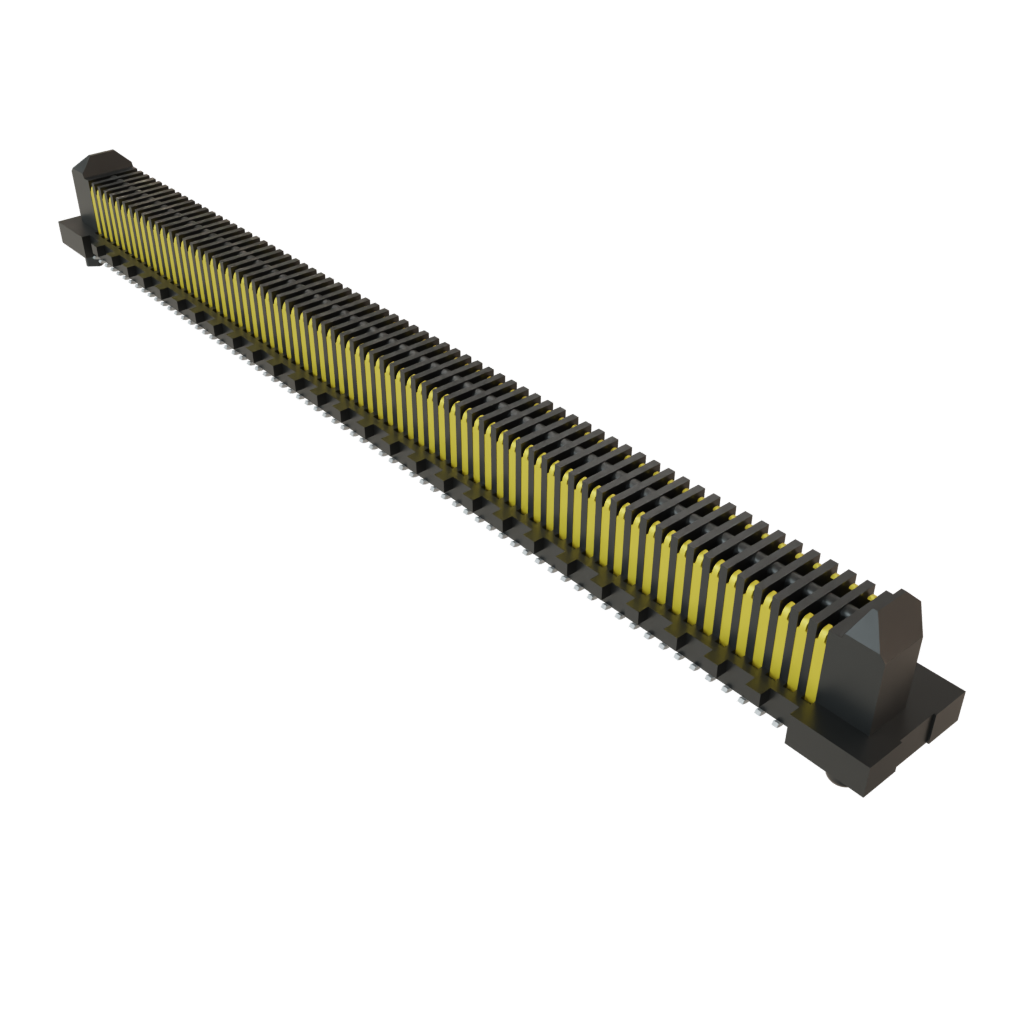

Conn Micro High Speed Terminal Strip HDR 140 POS 0.8mm Solder ST Top Entry SMD Edge Rate® T/R

MountingSurface Mount

Quick Jump:

Distributor	Package Type	Min Qty	1+	10+	25+	50+	Stock	Action
Samtec	Tape & Reel	1	7.738	6.991	6.608	6.403	124 In Stock	View

Samtec ERM8-070-02.0-L-DV-TR technical specifications.

Type	Micro High Speed Terminal Strip
Gender	HDR
Number of Contacts	140
Terminal Pitch	0.8mm
Number of Rows	2
Termination Method	Solder
Min Operating Temperature	-55°C
Max Operating Temperature	125°C
Body Orientation	Straight
Mounting	Surface Mount
Max Current Rating	2.2/ContactA
Max Voltage Rating	318VDC\|225VAC
Tradename	Edge Rate®
Height	5.97mm

RoHS	Yes
RoHS Version	2011/65/EU, 2015/863

No datasheet is available for this part.
