Technical Specifications
Samtec ESQ-110-23-S-D technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | ESQ |
| Termination | Solder |
| Voltage Rating (AC) | 550V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec ESQ-110-23-S-D Datasheet
Download the complete datasheet for Samtec ESQ-110-23-S-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

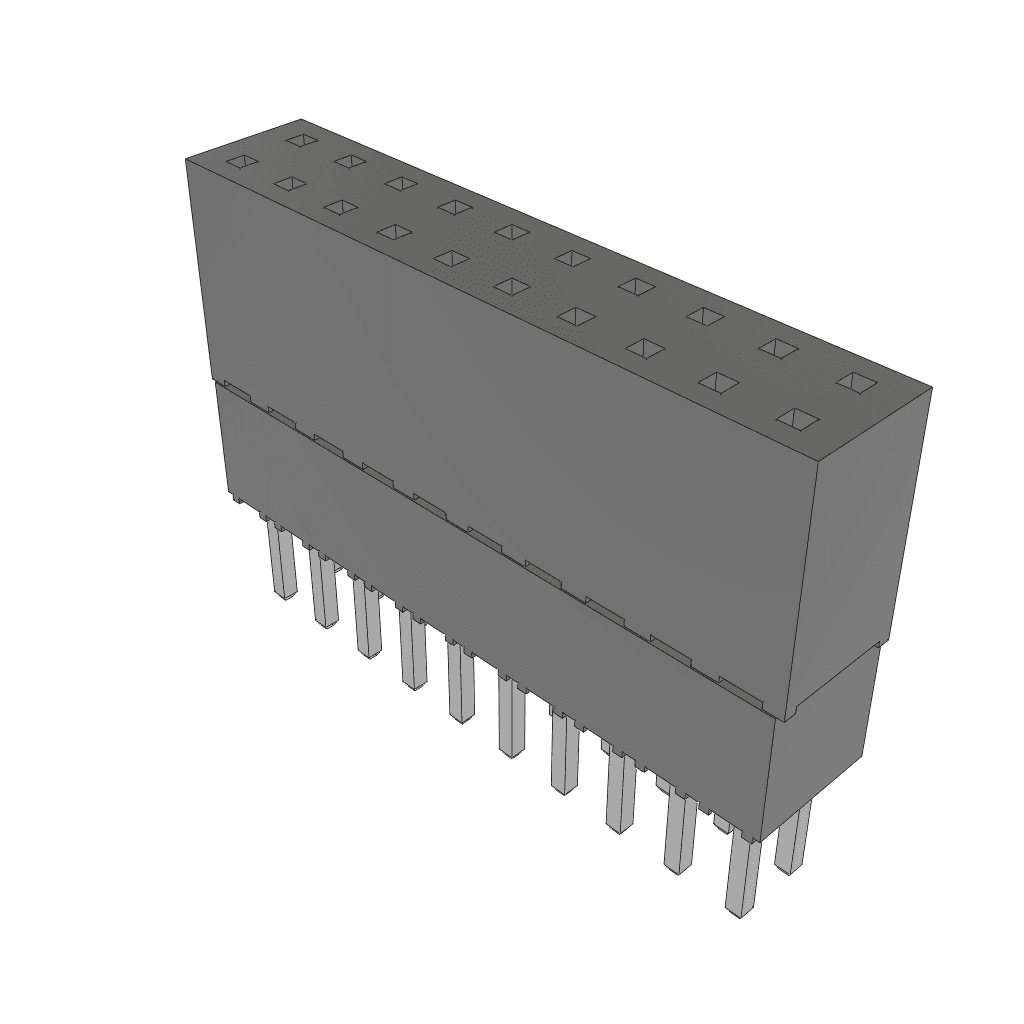

Product Images
