Technical Specifications
Samtec FC1-20-02-T technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Housing Color
Black
Mating Cycles
25
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
20
Number of Positions
20
Number of Rows
1
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
1mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
FC1
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FC1-20-02-T Datasheet
Download the complete datasheet for Samtec FC1-20-02-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

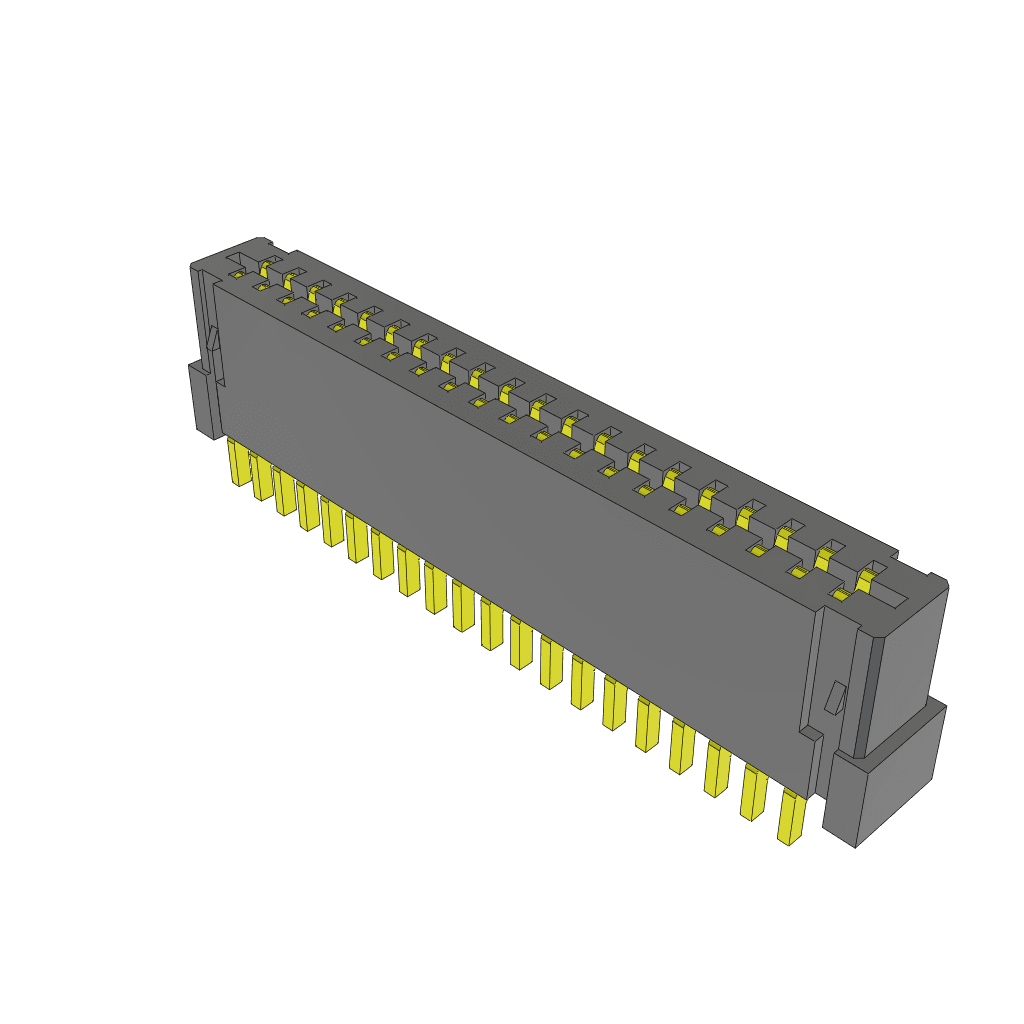

Product Images
