20-position, 2-row right-angle shrouded header with 1.27mm pitch for board-to-board and mezzanine applications. Features gold-plated copper female socket contacts and IDT termination for ribbon cable. Operates within a -40°C to 105°C temperature range with a 500mA maximum current rating. This free-hanging connector is RoHS compliant and packaged in a tube.
MountingFree Hanging
Quick Jump:
Technical Specifications
Samtec FFSD-10-01-N technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Gold
Contact Type
Female Socket
Depth
3.05mm
Gender
Receptacle
Length
16.89mm
Max Current Rating
500mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Right Angle
Package Quantity
1
Packaging
Rail/Tube
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.05inch
Series
Tiger Eye™ FFSD
Termination
IDT
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
Samtec FFSD-10-01-N Datasheet
Download the complete datasheet for Samtec FFSD-10-01-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

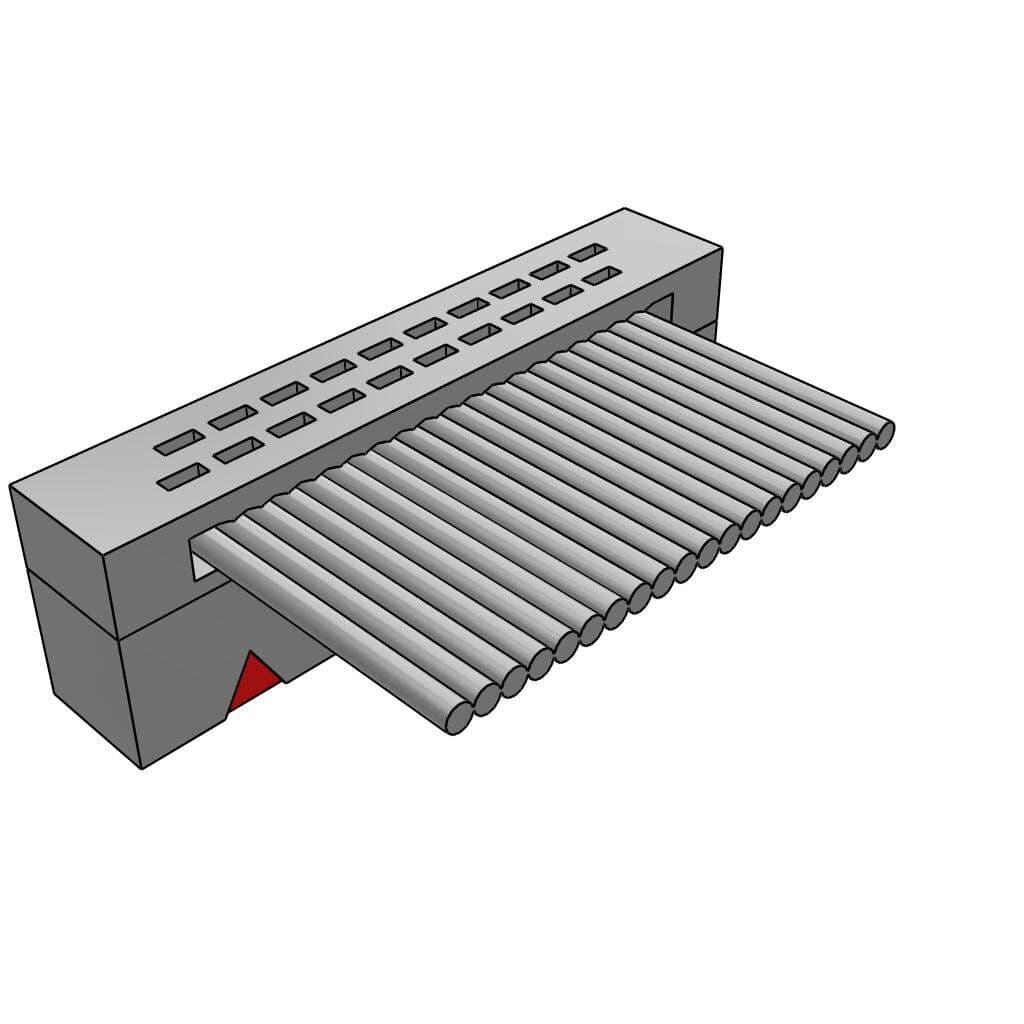

Product Images
