16-position, 2-row socket strip connector with a 1.27mm pitch. Features gold-plated bronze female socket contacts with a square shape. Surface mount orientation with straight termination and a solder lead-free finish. Rated for 1.75A maximum current and operates between -55°C and 125°C. Black polymer insulation and housing.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FLE-108-01-G-DV technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
3.33mm
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
10.27mm
Max Current Rating
1.75A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
1.27mm
Series
FLE
Termination
Solder
Width
3.33mm
Compliance
RoHS
Compliant
Datasheet
Samtec FLE-108-01-G-DV Datasheet
Download the complete datasheet for Samtec FLE-108-01-G-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

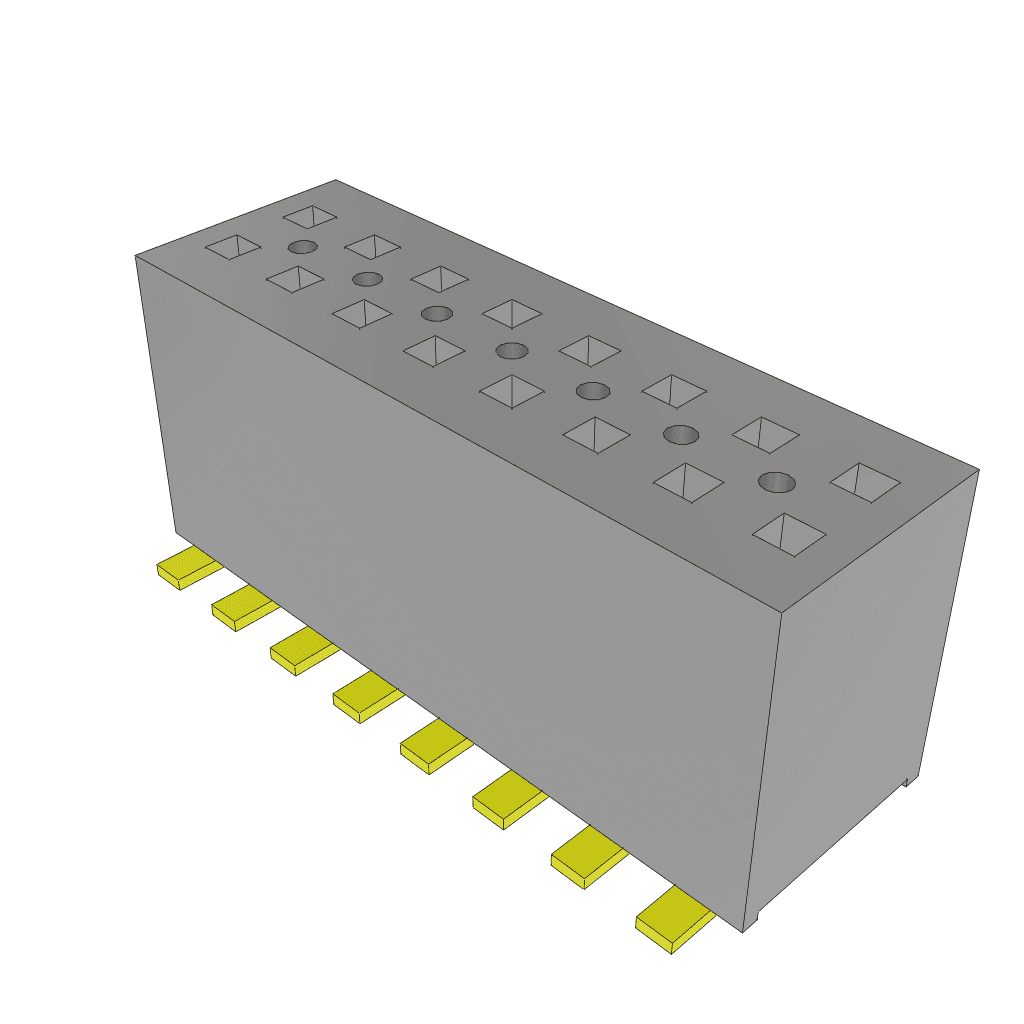

Product Images
