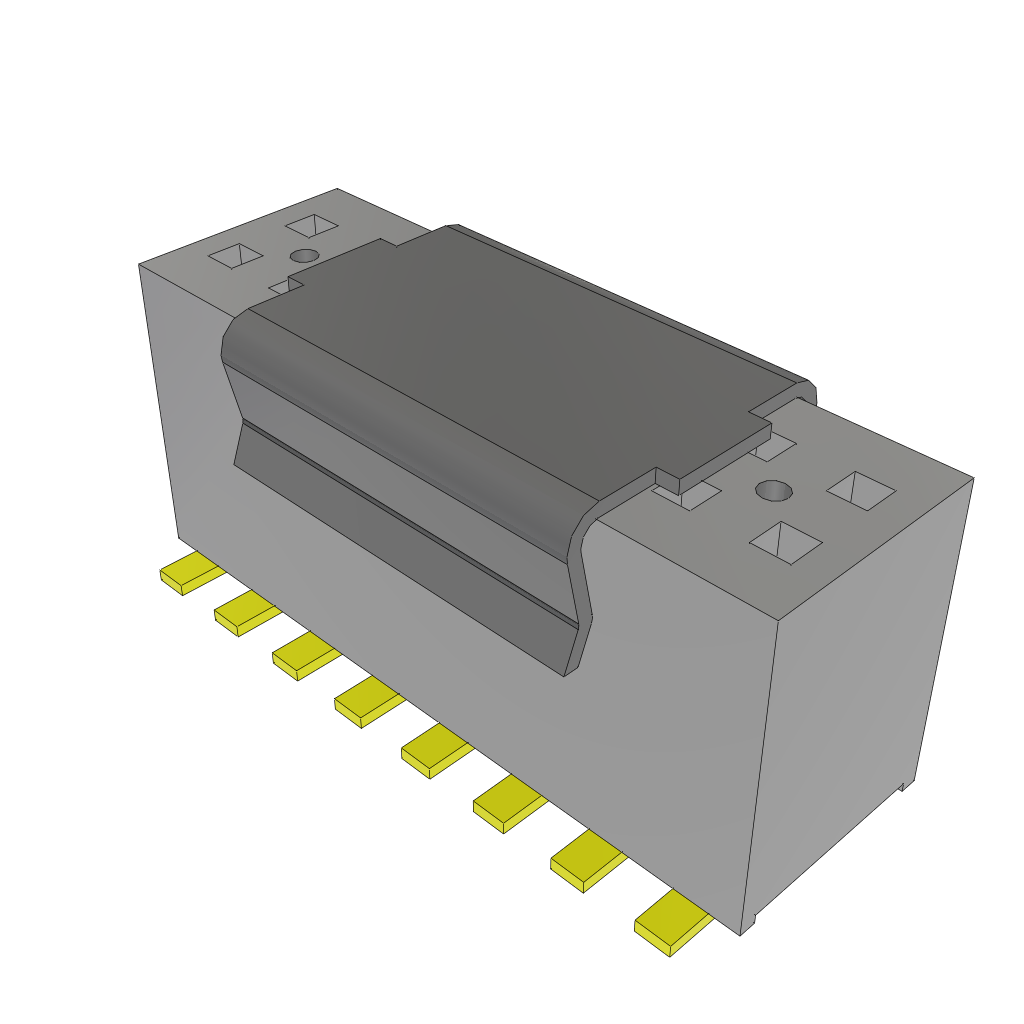

16-position, 2-row socket strip with 1.27mm pitch, designed for straight, surface-mount termination via solder. Features gold-plated bronze contacts and a black housing. Rated for a maximum current of 1.75A and operates across a temperature range of -55°C to 125°C. This RoHS compliant component is supplied on tape and reel.
Quick Jump:
Technical Specifications
Samtec FLE-108-01-G-DV-P-TR technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
3.33mm
Gender
Female
Housing Color
Black
Length
10.27mm
Max Current Rating
1.75A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
16
Number of Rows
2
Orientation
Straight
Packaging
Tape and Reel
Pitch
1.27mm
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FLE-108-01-G-DV-P-TR Datasheet
Download the complete datasheet for Samtec FLE-108-01-G-DV-P-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
