Technical Specifications
Samtec FLE-110-01-G-DV-P-TR technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
4.6mm
Gender
Female
Housing Color
Black
Length
12.81mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
20
Number of Rows
2
Orientation
Straight
Packaging
Tape and Reel
Pitch
1.27mm
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FLE-110-01-G-DV-P-TR Datasheet
Download the complete datasheet for Samtec FLE-110-01-G-DV-P-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

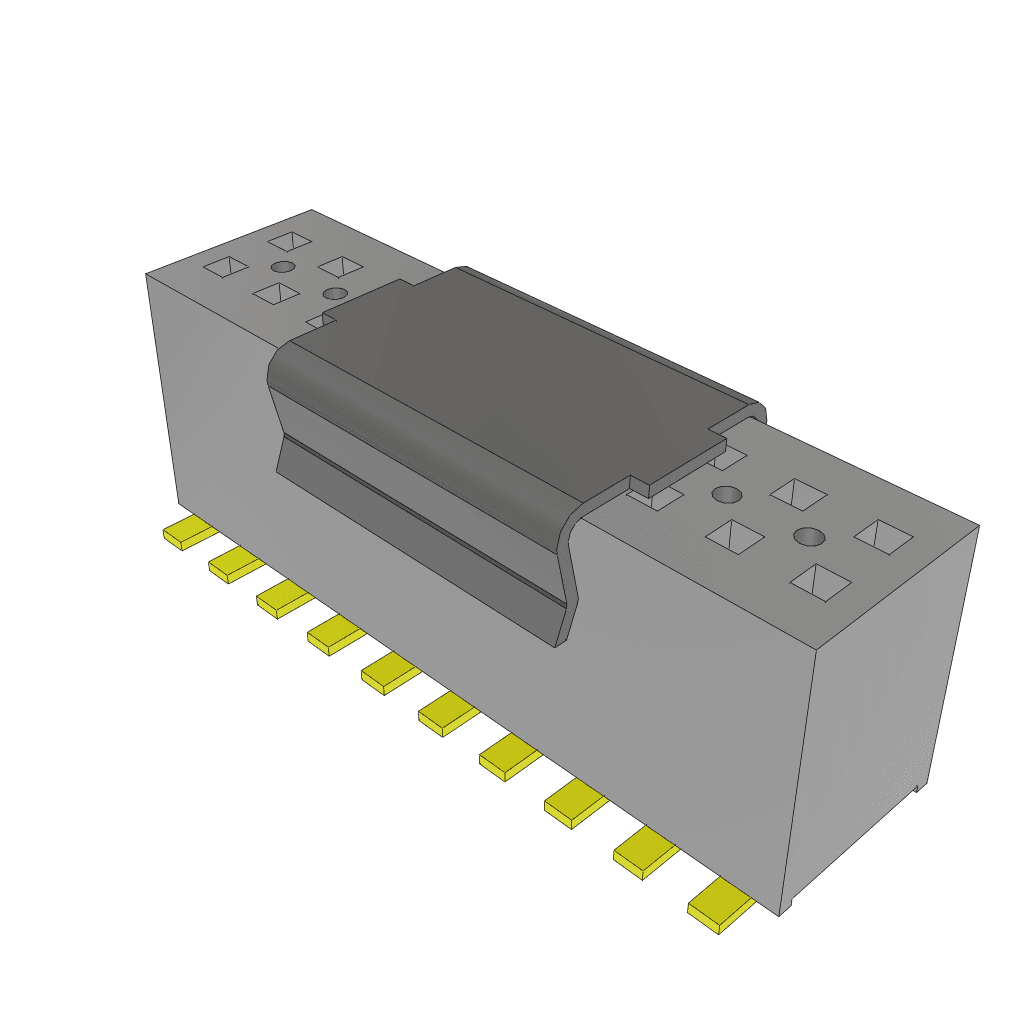

Product Images
