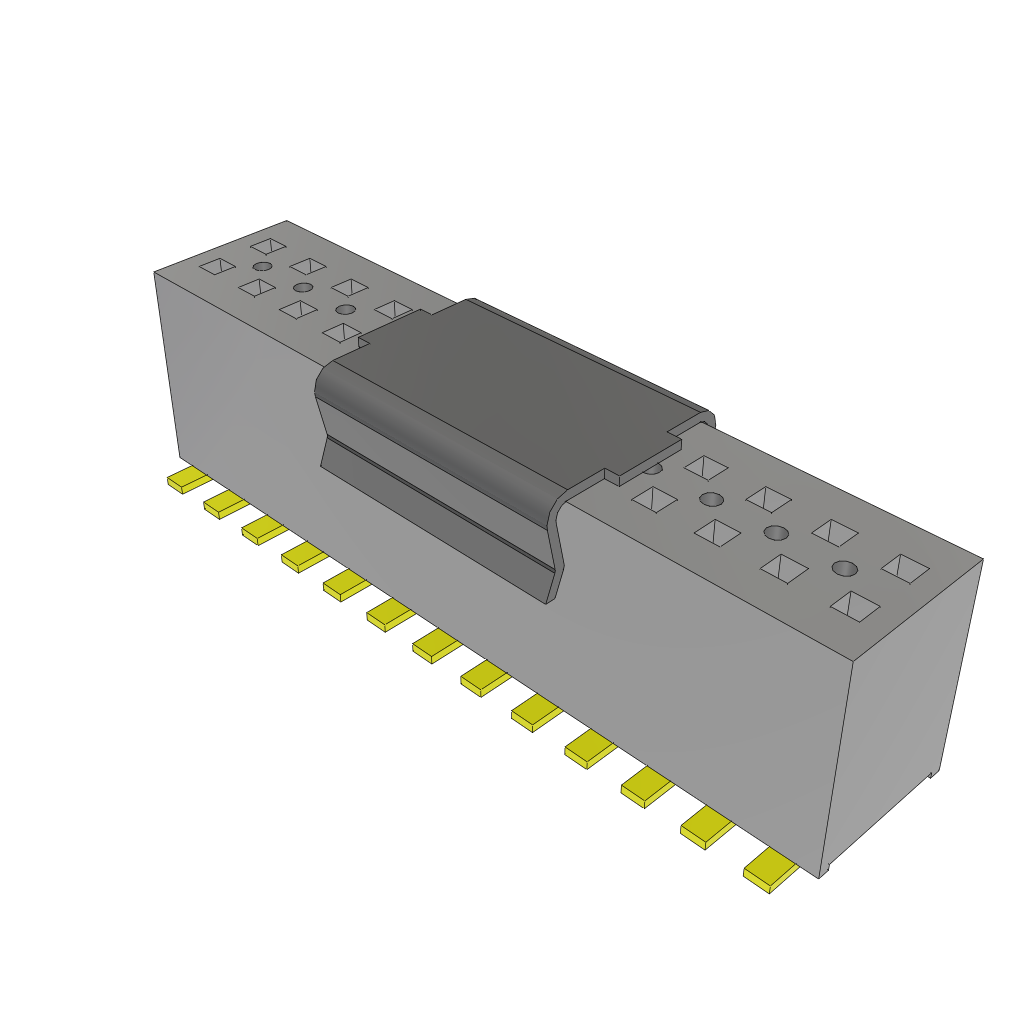

26-position, 2-row shrouded socket strip with 1.27mm pitch. Features straight, surface-mount termination with gold-plated bronze female socket contacts. Housing is black polymer, rated for 1.75A max current and operating temperatures from -55°C to 125°C. Supplied in a tube.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FLE-113-01-G-DV-A-P technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
3.33mm
Gender
Female
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
16.62mm
Max Current Rating
1.75A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
26
Number of Positions
26
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Rail/Tube
Pitch
1.27mm
RoHS Compliant
Yes
Row Spacing
0.05inch
Series
FLE
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FLE-113-01-G-DV-A-P Datasheet
Download the complete datasheet for Samtec FLE-113-01-G-DV-A-P to view detailed technical specifications.
