Surface mount socket strip connector featuring 40 positions across 2 rows with a 1.27mm pitch. This female socket connector offers gold-plated bronze contacts with a square shape, rated for a maximum current of 1.75A and operating temperatures from -55°C to 125°C. The straight, black polymer housing ensures reliable board-to-board connectivity.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FLE-120-01-G-DV-A technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
3.33mm
Gender
Female
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
25.51mm
Max Current Rating
1.75A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
1.27mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.05inch
Series
FLE
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FLE-120-01-G-DV-A Datasheet
Download the complete datasheet for Samtec FLE-120-01-G-DV-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

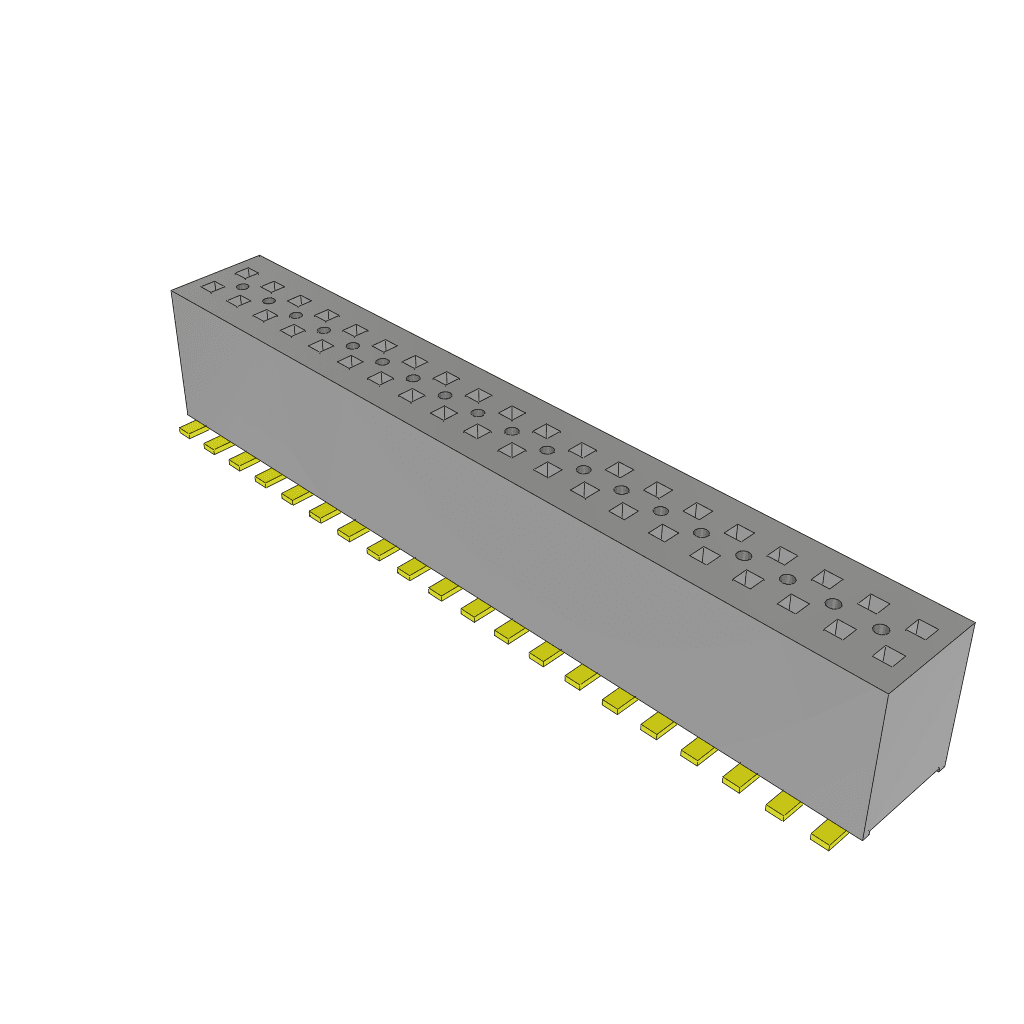

Product Images
