22-position unshrouded header with a 0.8mm pitch, designed for surface mount applications. Features gold-plated bronze male pin contacts with a square shape, ensuring reliable mating. Operates within a temperature range of -55°C to 125°C and boasts a UL94 V-0 flammability rating. The black polymer insulation material and housing contribute to its robust construction.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FTE-111-01-G-DV technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 1.38mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Pitch | 0.8mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FTE |
| Termination | Solder |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec FTE-111-01-G-DV Datasheet
Download the complete datasheet for Samtec FTE-111-01-G-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

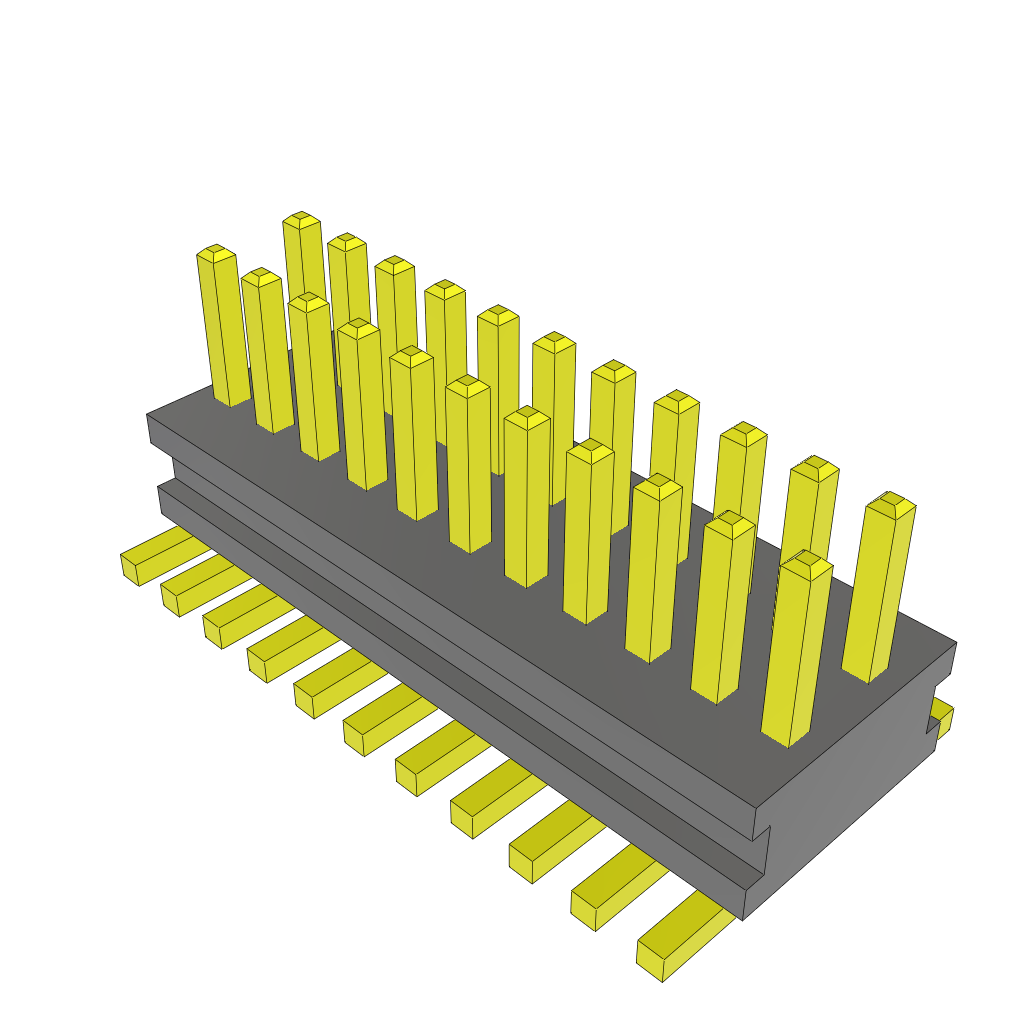

Product Images
