Unshrouded header with 40 positions and 2 rows on a 1.27mm pitch. Features male pin contacts with gold plating and bronze material, offering a 0.12-inch mating length. Rated for 1.75A maximum current and operates between -55°C and 125°C. Straight, top-entry, through-hole mounting with solder termination. Black polymer insulation and housing meet UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec FTSH-120-01-L-D technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Mating Length | 0.12inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 3.43mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 25.4mm |
| Max Current Rating | 1.75A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | FTSH |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec FTSH-120-01-L-D Datasheet
Download the complete datasheet for Samtec FTSH-120-01-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

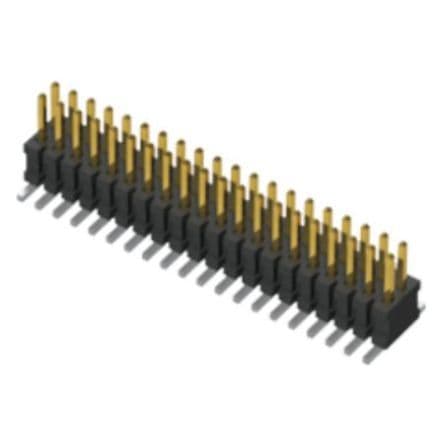

Product Images
