Technical Specifications

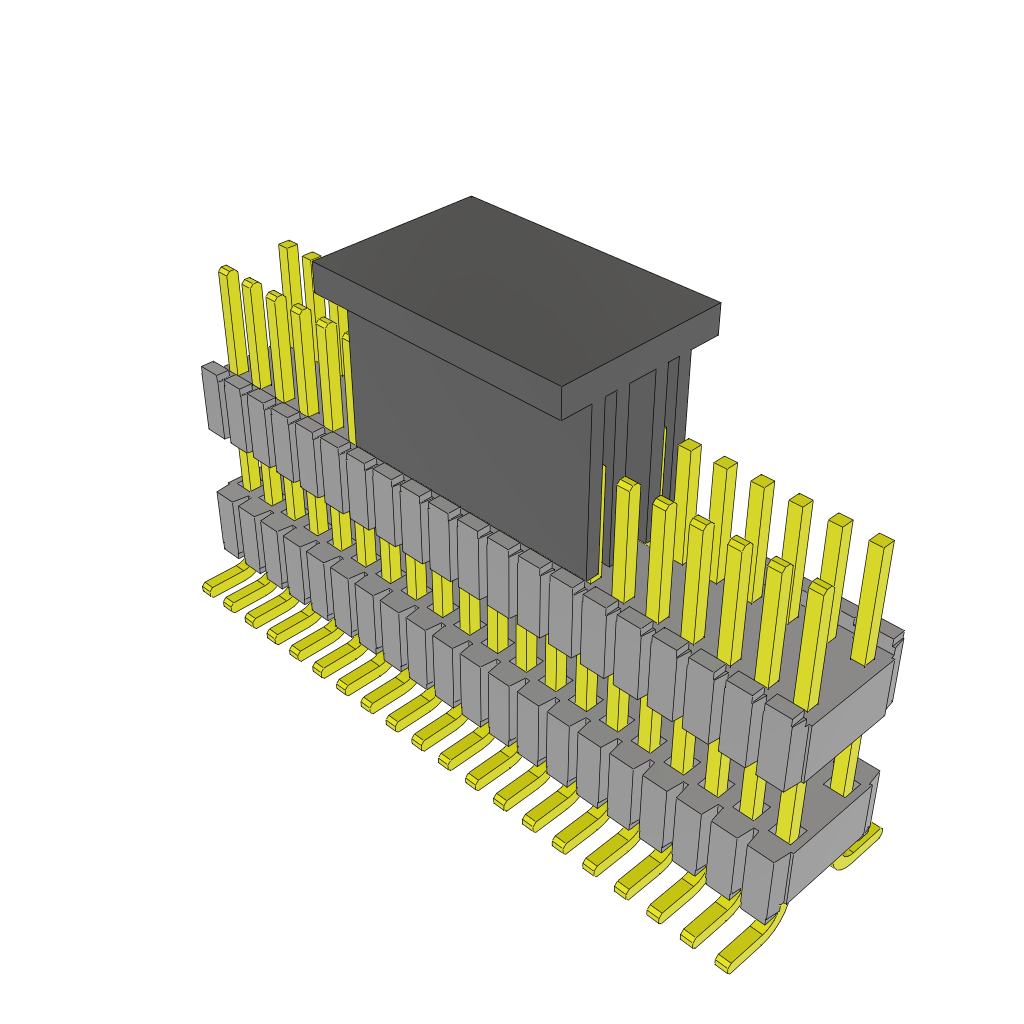

Samtec HDWM-20-55-S-D-355-SM-P technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 40 |
| Terminal Pitch | 1.27mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Surface Mount |
| Max Current Rating | 1/ContactA |
| Height | 12.45mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec HDWM-20-55-S-D-355-SM-P Datasheet
Download the complete datasheet for Samtec HDWM-20-55-S-D-355-SM-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
