Technical Specifications

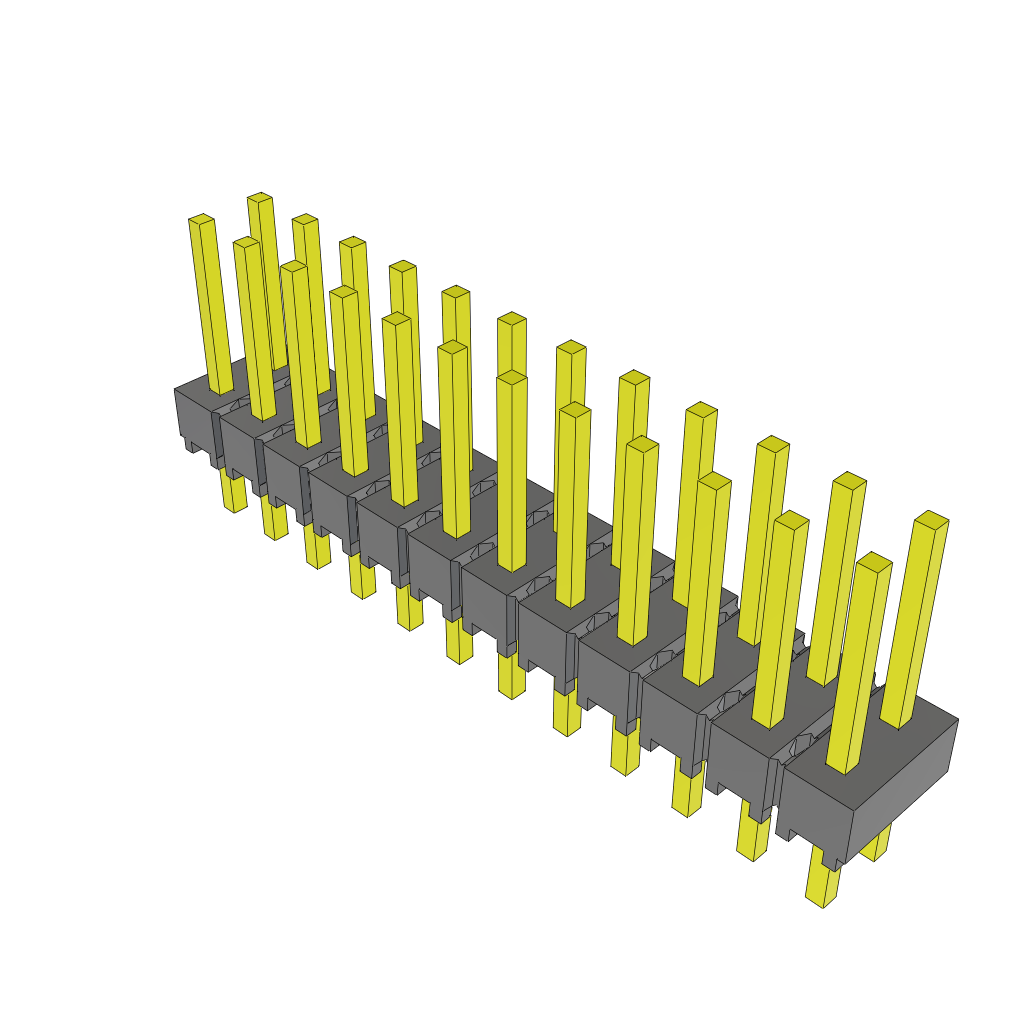

Samtec HMTSW-112-24-T-D-270 technical specifications.
General
| Terminal Pitch (mm) | 2.54 |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Number of Rows | 2 |
| Row Spacing (mm) | 2.54 |
| Product Length (mm) | 30.48 |
| Product Depth (mm) | 5.02 |
| Product Height (mm) | 9.39 |
| Tail Length (mm) | 2.8 |
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 24 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Max Current Rating | 3/ContactA |
Compliance
| Cage Code | 55322 |
| EU RoHS | Yes |
| HTS Code | 8536694040 |
| Schedule B | 8536694040 |
| ECCN | EAR99 |
| Automotive | No |
| AEC Qualified | No |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
Datasheet
Samtec HMTSW-112-24-T-D-270 Datasheet
Download the complete datasheet for Samtec HMTSW-112-24-T-D-270 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
