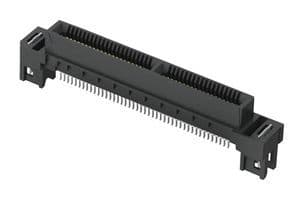

HSEC8-140-01-L-D-EM2

Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Socket, ROHS COMPLIANT

MountingStraddle Mount, Edge, Board

Quick Jump:

Samtec HSEC8-140-01-L-D-EM2 technical specifications.

Body Material	Polymer, Liquid Crystal Polymer
Card Thickness	1.57mm
Color	Black
Contact Material	Copper
Contact Plating	Gold
Gender	Female
Insulation Material	Polymer
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Straddle Mount, Edge, Board
Number of Positions	80
Number of Rows	2
Packaging	Rail/Tube
RoHS Compliant	Yes
Series	Edge Rate™ HSEC8
Termination	Solder

RoHS

Compliant
