Shrouded header with 10 positions and 2 rows, featuring a 2.54mm pitch and 0.1-inch row spacing. This straight, top-entry, through-hole mounted component has male pin contacts made of bronze with gold plating, offering a 3A max current rating. Operating temperature range is -55°C to 125°C, with a contact mating length of 0.25 inches. The natural colored housing and contacts are RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec HTST-105-01-L-D technical specifications.
General
Color
Natural
Contact Material
Bronze
Contact Mating Length
0.25inch
Contact Plating
Gold
Contact Type
Male Pin
Depth
9.27mm
Gender
Male
Housing Color
Natural
Length
20.32mm
Max Current Rating
3A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
Flex Stack, HTST
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec HTST-105-01-L-D Datasheet
Download the complete datasheet for Samtec HTST-105-01-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

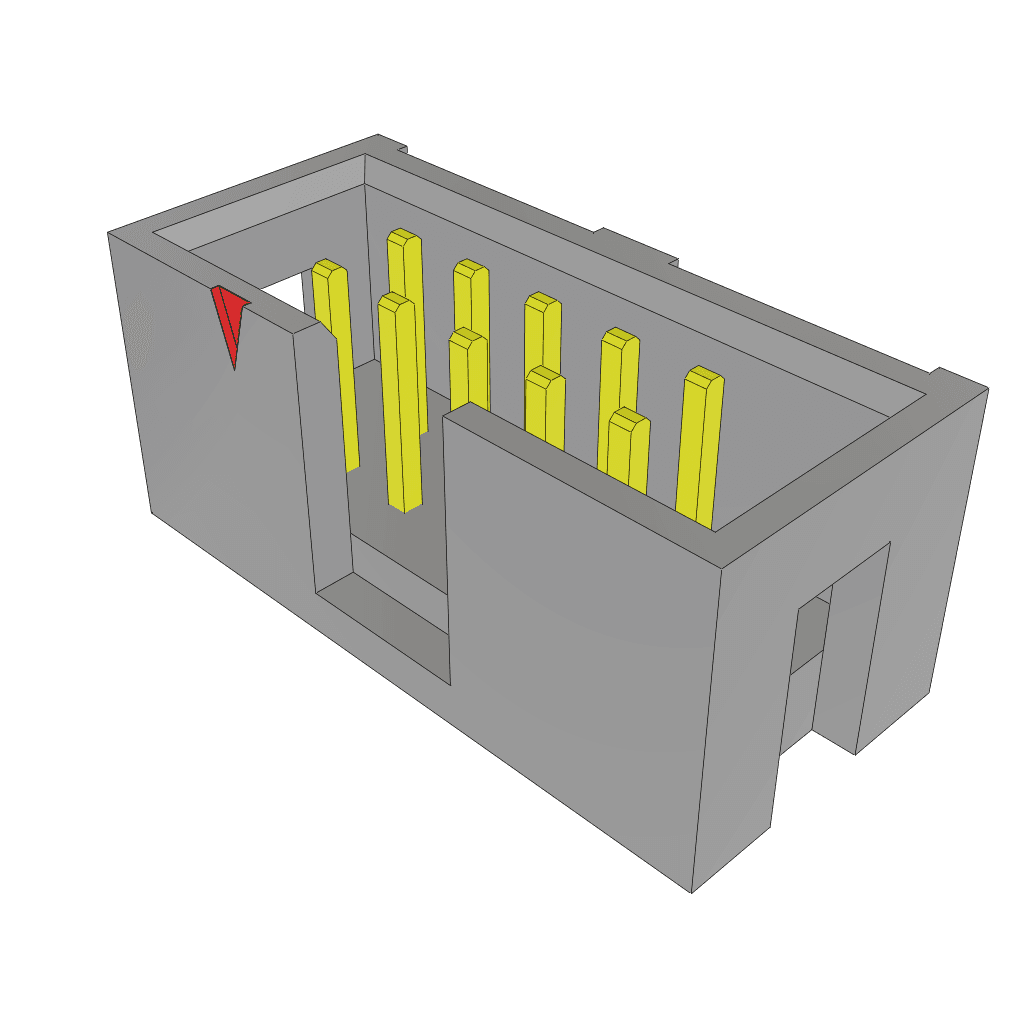

Product Images
