Technical Specifications
Samtec HTST-105-01-S-DV-01 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Natural |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Positions Loaded | 9 |
| Number of Rows | 2 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Flex Stack, HTST |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec HTST-105-01-S-DV-01 Datasheet
Download the complete datasheet for Samtec HTST-105-01-S-DV-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

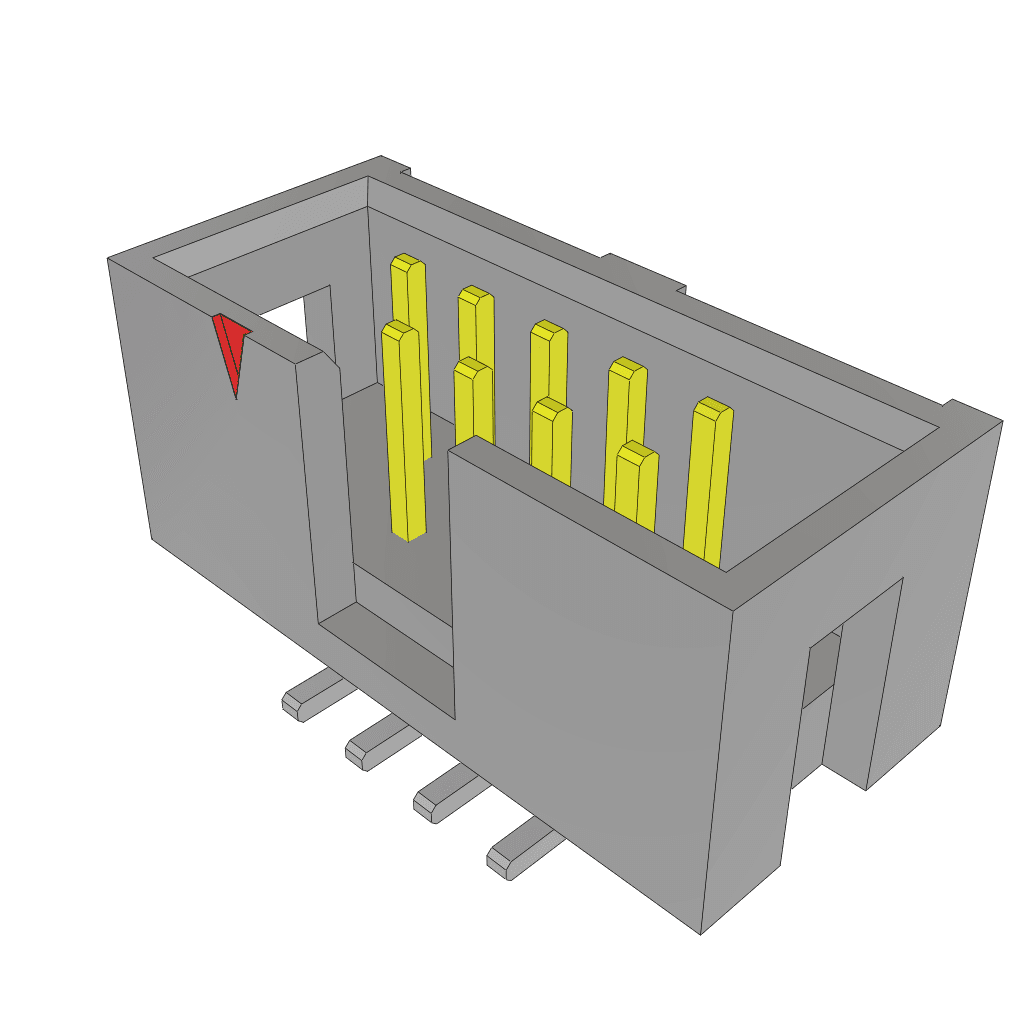

Product Images
