Technical Specifications
Samtec IPD1-02-D technical specifications.
General
Color
White
Contact Type
Female Socket
Depth
12.83mm
Gender
Female
Length
6.48mm
Max Current Rating
7.4A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging
Number of Contacts
4
Number of Positions
4
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
Mini Mate® IPD1
Termination
Crimp
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Compliant
Datasheet
Samtec IPD1-02-D Datasheet
Download the complete datasheet for Samtec IPD1-02-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

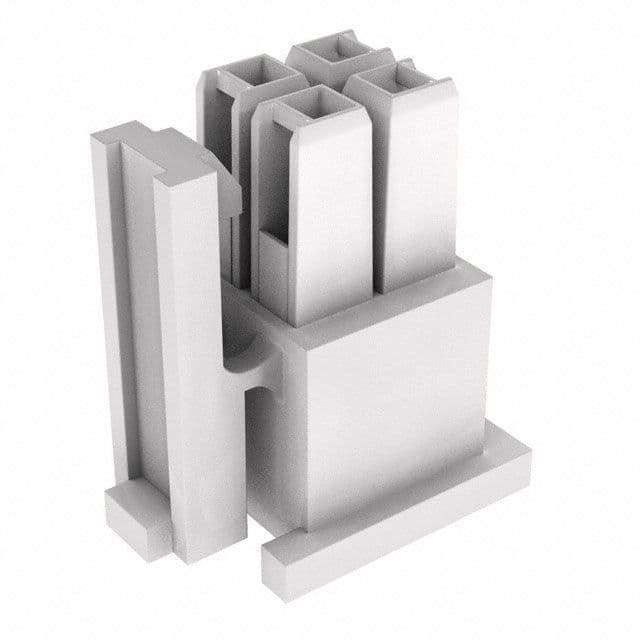

Product Images
