10-position, 2-row straight wire housing for crimp termination, featuring a 2.54mm pitch and 20-30AWG wire gauge compatibility. This female socket connector offers a maximum current rating of 7.4A and a voltage rating of 600V AC, operating within a temperature range of -55°C to 125°C. Designed for free-hanging cable mounting, this white, RoHS compliant component is supplied in bulk packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
Samtec IPD1-05-D technical specifications.
General
Color
White
Contact Type
Female Socket
Depth
12.83mm
Gender
Female
Length
14.17mm
Max Current Rating
7.4A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
Mini Mate® IPD1
Termination
Crimp
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Compliant
Datasheet
Samtec IPD1-05-D Datasheet
Download the complete datasheet for Samtec IPD1-05-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

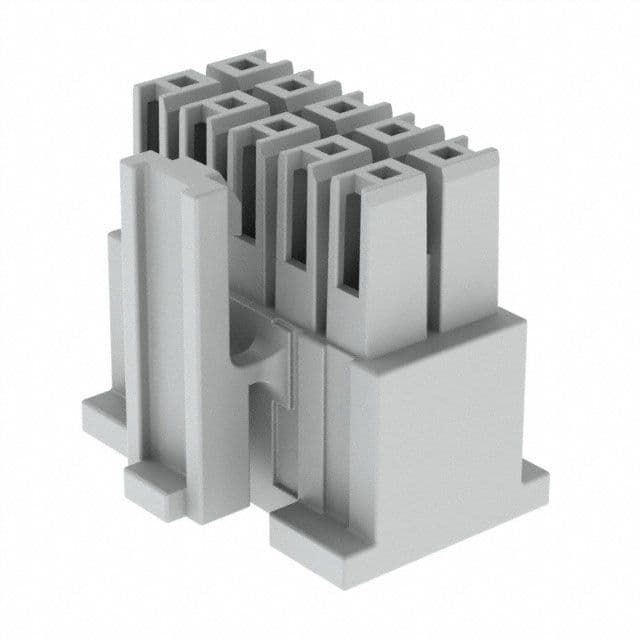

Product Images
