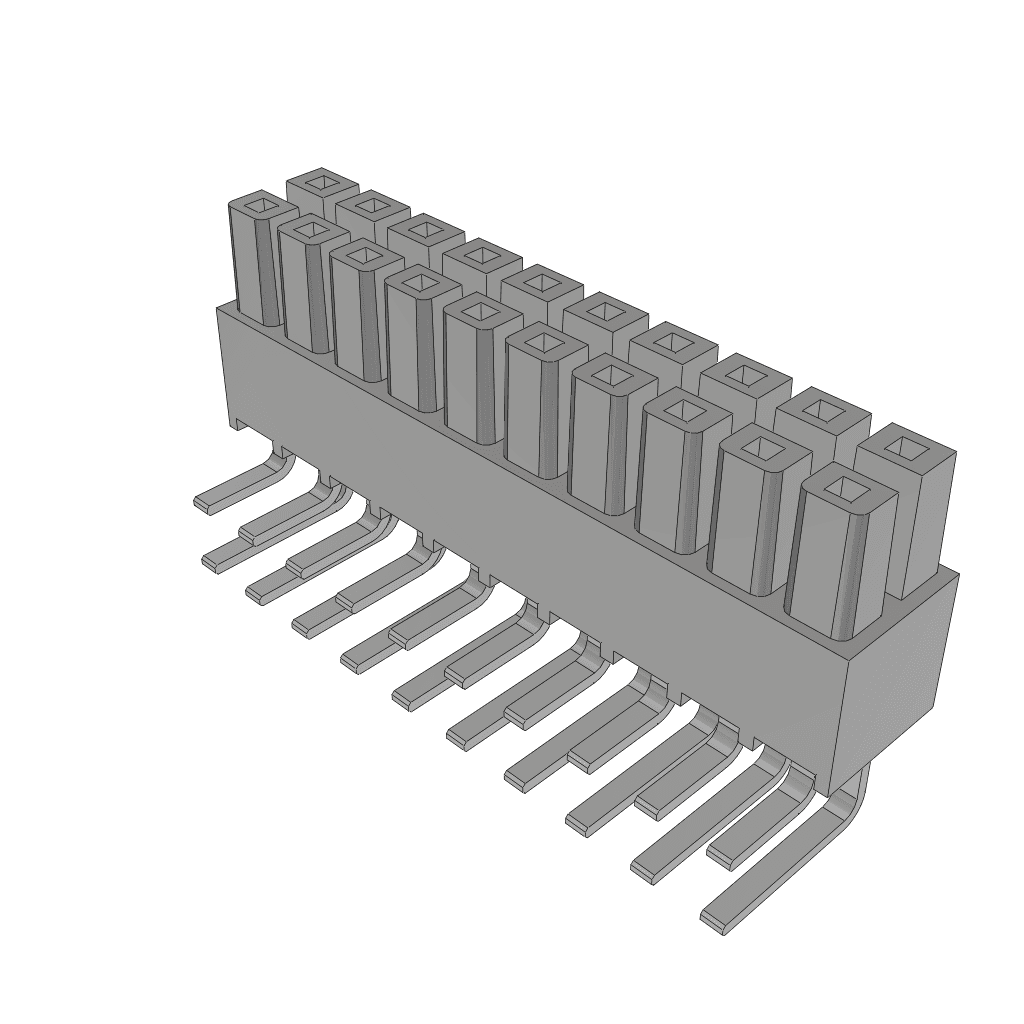

20-position, 2-row right-angle socket strip with 2.54mm pitch for through-hole mounting. Features gold-plated bronze female socket contacts with a square shape, suitable for solder termination. Rated for 775V AC and 1.095kV DC, with a maximum operating temperature of 125°C. Black polymer insulation and housing.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec IPS1-110-01-S-D-RA technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini Mate® IPS1 |
| Termination | Solder |
| Voltage Rating (AC) | 775V |
| DC Rated Voltage | 1.095kV |
Compliance
| RoHS | Compliant |
Datasheet
Samtec IPS1-110-01-S-D-RA Datasheet
Download the complete datasheet for Samtec IPS1-110-01-S-D-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
