Technical Specifications
Samtec MEC1-150-02-S-D-LC technical specifications.
General
| Card Thickness | 0.062inch |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Loop Bellows |
| Gender | Female |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Packaging | Rail/Tube |
| Pitch | 0.039inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MEC1 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec MEC1-150-02-S-D-LC Datasheet
Download the complete datasheet for Samtec MEC1-150-02-S-D-LC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

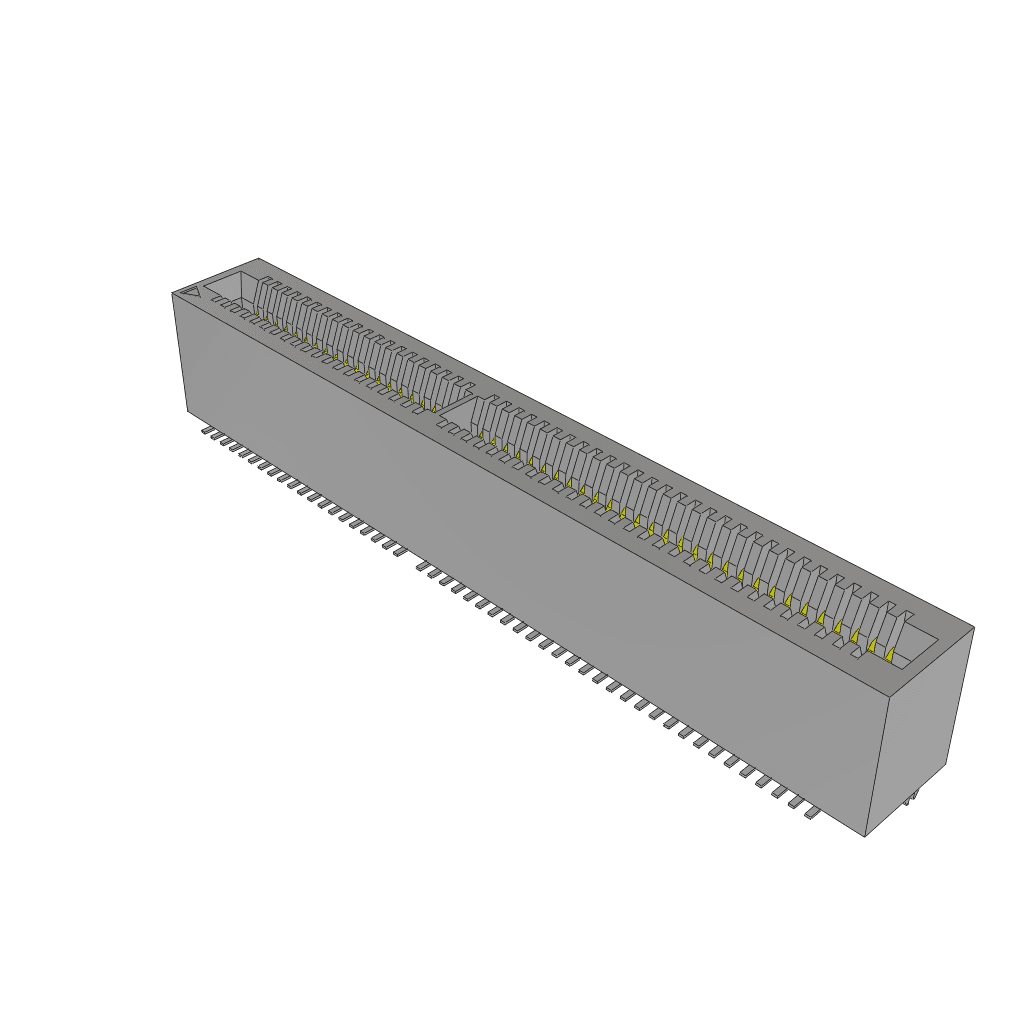

Product Images
