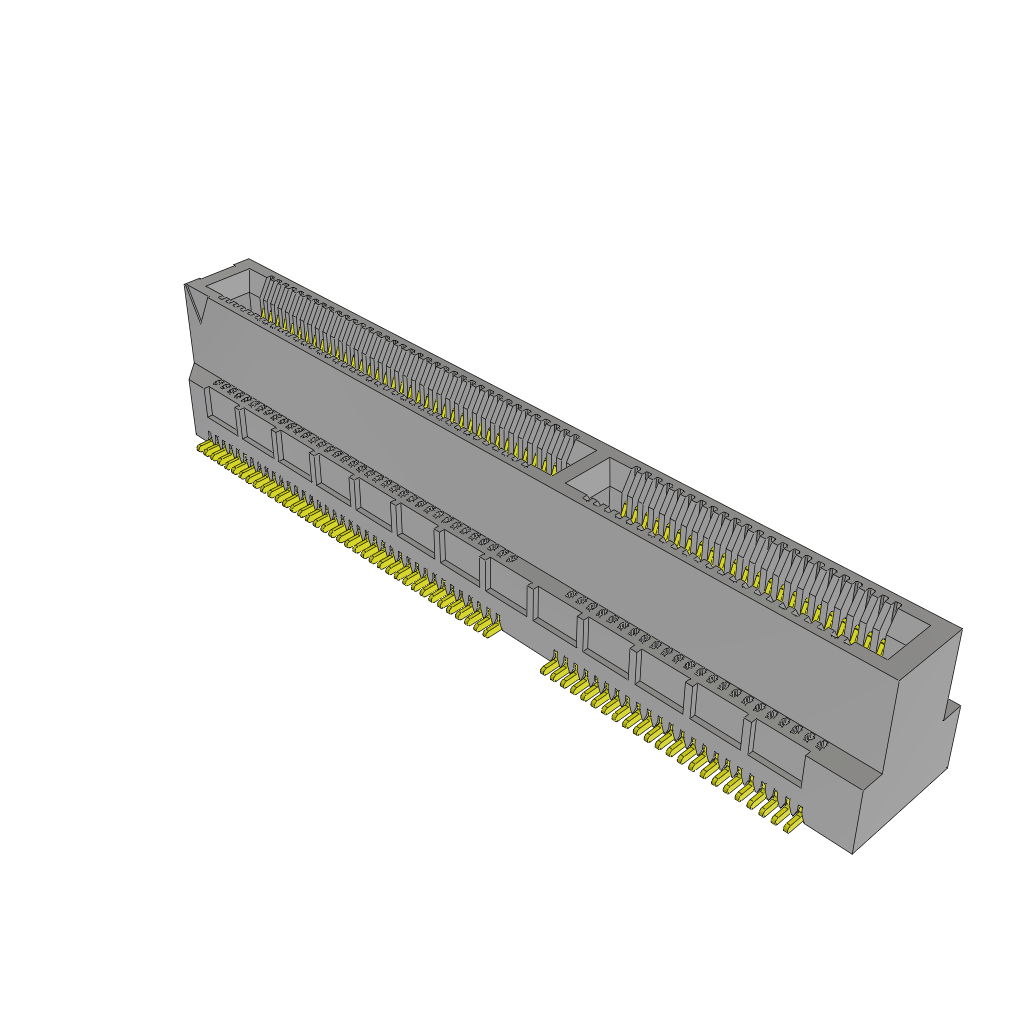

Vertical, surface mount card edge receptacle with 120 contacts on a 0.635mm pitch. Features gold and tin plated bronze contacts, a 1.7A current rating, and a 210V voltage rating. Designed for 0.062-inch thick cards, this black polymer insulated connector operates from -55°C to 125°C. Termination is via solder.
Voltage Rating210V
Current Rating1.7A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec MEC6-160-02-L-DV-A technical specifications.
General
Card Thickness
0.062inch
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Current Rating
1.7A
Depth
8.5mm
Gender
Female
Insulation Material
Polymer
Length
42.87mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
120
Number of Positions
120
Number of Rows
2
Orientation
Vertical
Packaging
Rail/Tube
Pitch
0.635mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MEC6 - DV
Termination
Solder
Voltage Rating
210V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Samtec MEC6-160-02-L-DV-A Datasheet
Download the complete datasheet for Samtec MEC6-160-02-L-DV-A to view detailed technical specifications.
