Surface mount socket strip connector with 100 positions and 2 rows, featuring a 1mm pitch. Contacts are gold-plated copper alloy with a square shape, designed for solder termination. Operating temperature range is -55°C to 125°C, with a voltage rating of 310V AC. The black polymer housing ensures durability.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec MLE-150-01-G-DV technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper, Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Gender
Receptacle
Height
3.12mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
50.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
100
Number of Positions
100
Number of Rows
2
Packaging
Rail/Tube
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MLE
Termination
Solder
Voltage Rating (AC)
310V
Width
3.07mm
Compliance
RoHS
Compliant
Datasheet
Samtec MLE-150-01-G-DV Datasheet
Download the complete datasheet for Samtec MLE-150-01-G-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

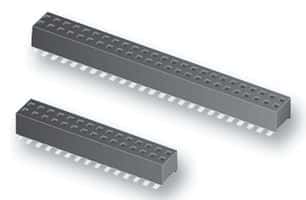

Product Images
