8-position, 2-row socket strip with 2mm pitch, straight orientation, and through-hole mounting. Features female socket contacts made of bronze with gold plating, housed in black material. Operates within a temperature range of -55°C to 125°C, with a solder termination. This RoHS compliant component is supplied in bulk packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MMS-104-01-L-DV technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Contact Type
Female Socket
Depth
4mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
8.56mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
8
Number of Positions
8
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
MMS
Termination
Solder
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Samtec MMS-104-01-L-DV Datasheet
Download the complete datasheet for Samtec MMS-104-01-L-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

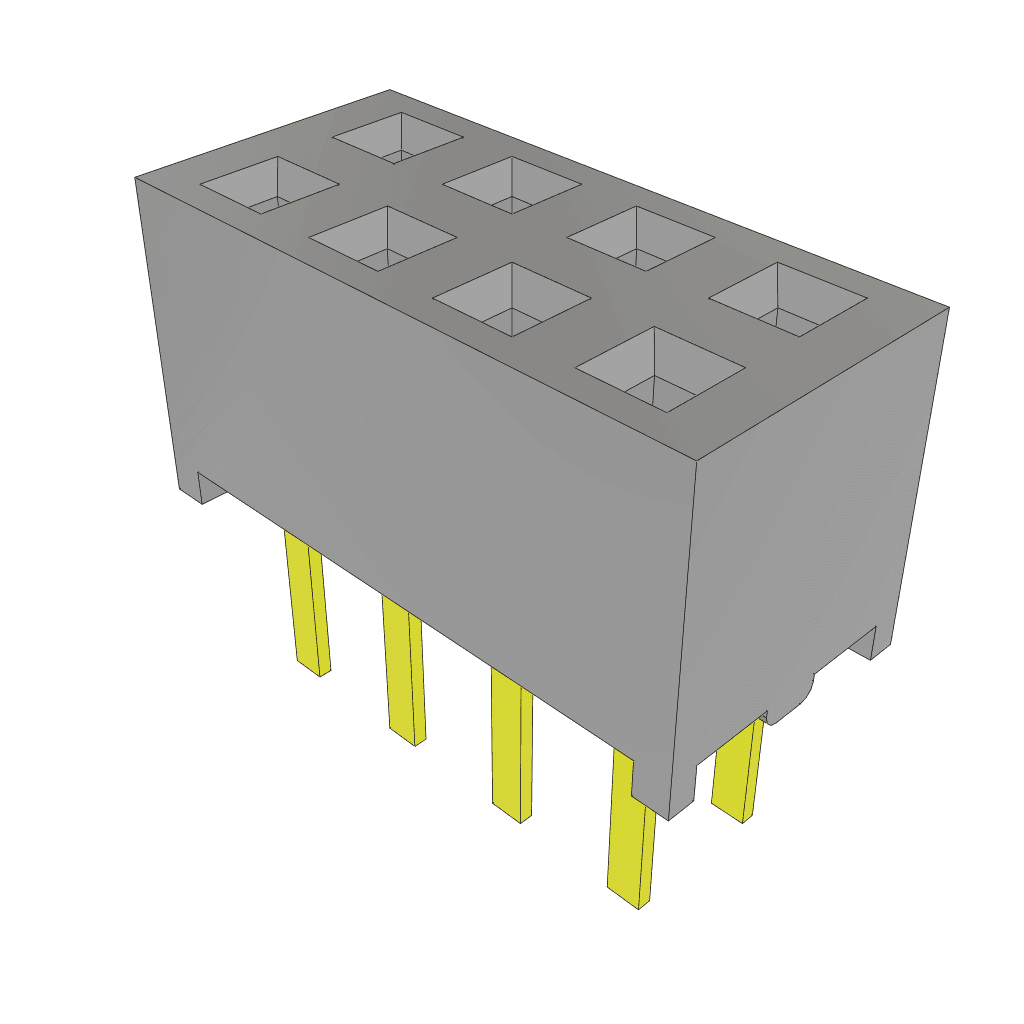

Product Images
